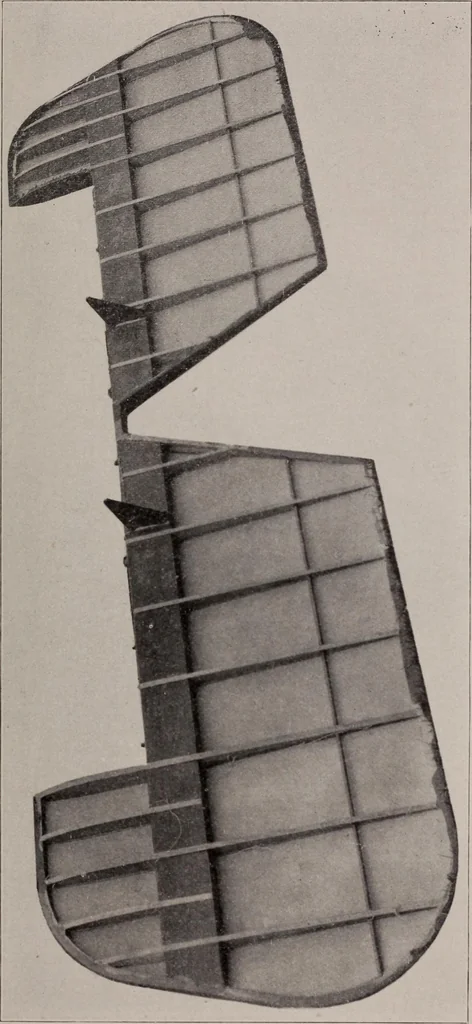

Fig. 145. Elevator Hinge with Removable Strap 218 Art. 147 B racing … K 219 Control Surfaces Art. 147 ting the main tube and rib weakened them materially. A much moresatisfactory joint is shown in Fig. 148. It will be observed from Fig. 147that where a rib of smaller diameter than the torque tube is joined tothe latter the rib is flattened so that its long axis is…
