Structural analysis and design of airplanes (1920)
United States. Army. Air Corps · [Washington] · leaf 245

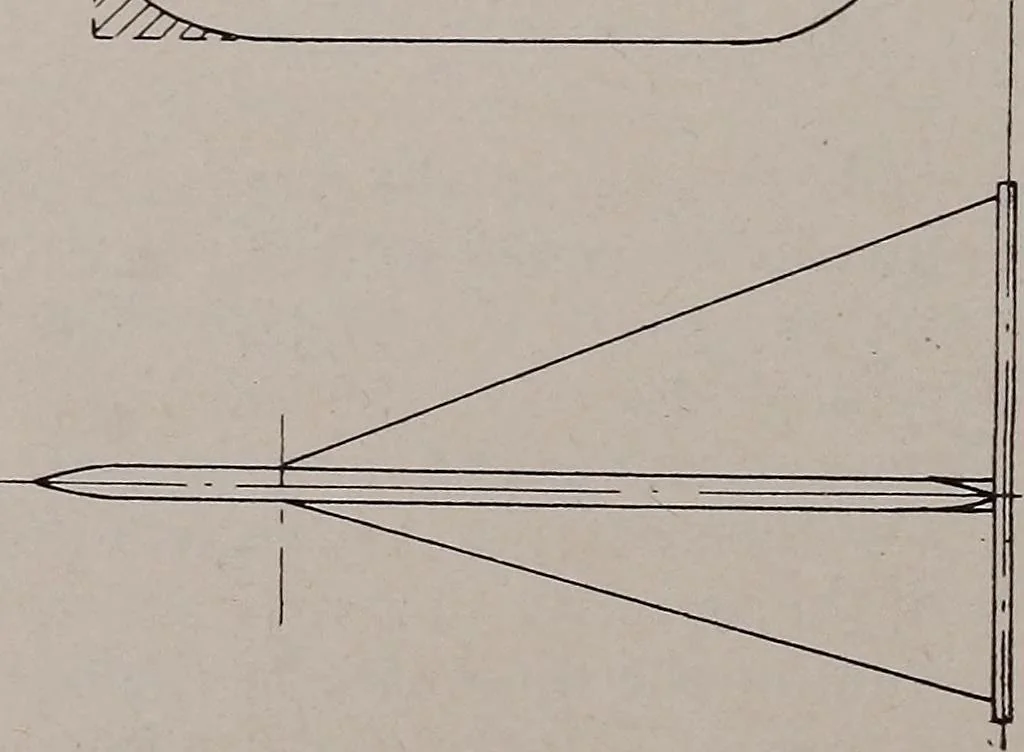

re. With the spars continuous, this vertical component of the wirestress equals the reaction at the point of attachment of the wire whichwould be obtained from a solution of the three moment equationwritten for the entire length of the spars. Owing to the fact that thehorizontal surfaces are… … Fig. 155. Example for Solution of Braced Surfaces 226 Art. 151 Braced Surfaces load per in. run on the surfaces. The rounding of the ends of the sur-faces is allowed for by decreasing the span so that the shaded areas inFig. 155 are equal, an approximation that is permissible in most cases.The…
Airplanes
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
