Structural analysis and design of airplanes (1920)
United States. Army. Air Corps · [Washington] · leaf 27

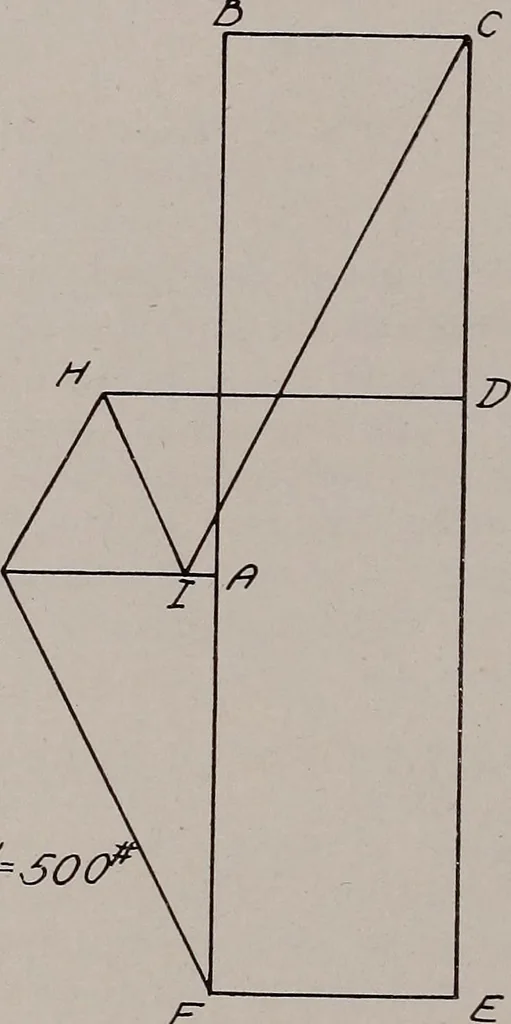

nd direction, by the sides of the polygon. In Fig. 10,ABCDEFA forms the force polygon for the external forces applied tothe truss. 13. Lettering of Truss—The first step in the solution is to make anaccurate line drawing (Fig. 9) of the structure, upon which all the ex-ternal forces are shown acting…
Airplanes
