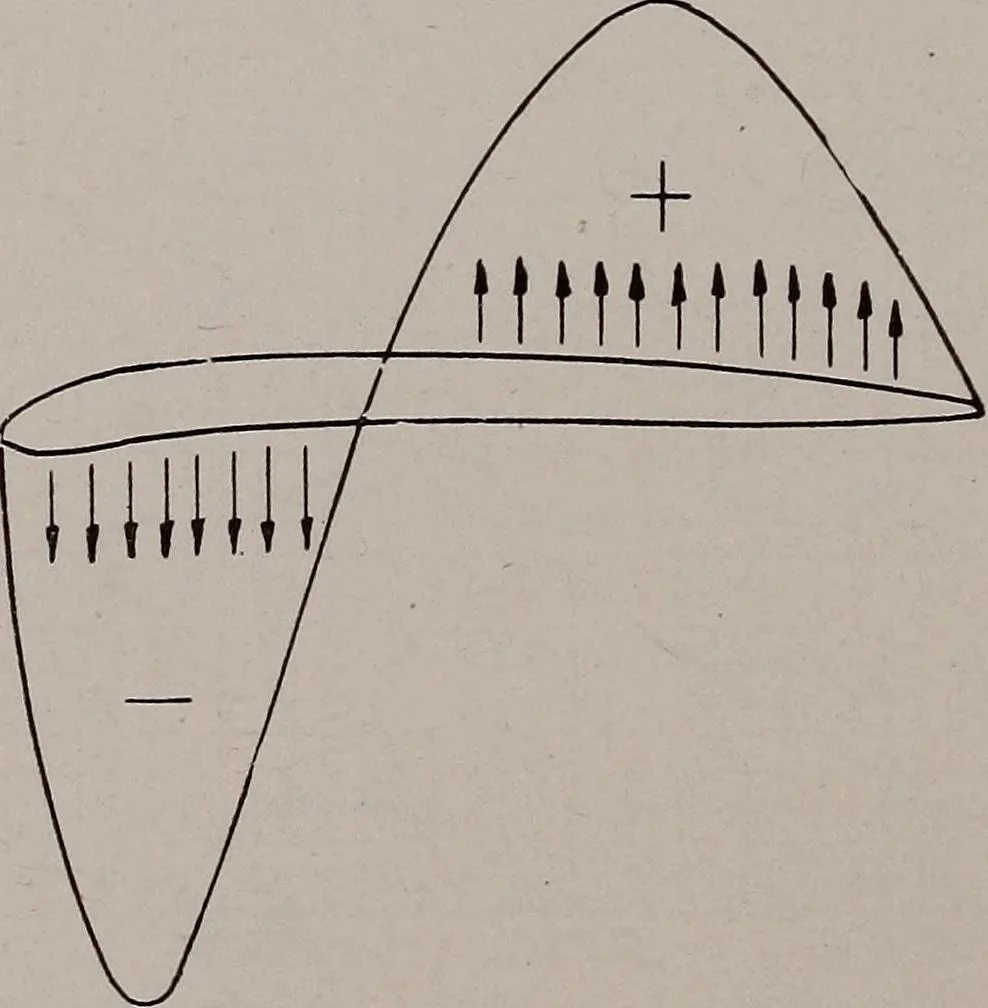

= chord length in ft.V — velocity in ft. per sec.Km= moment coefficient in absolute units. Kd == coefficient of resistance of entire airplane in absolute units. Values of Kd based on full flight performance data are listed below for various airplanes. From these, the value of Kd for any airplane… … Fig. 33. Pressure Distribution on Wing in a Dive 58 Aft. .43 Diving Ordnance D 0242 SE-5 0236 MB-3 0212 U.S. XB-1A 0206 V.C.P.-l 0200 Curves of values of Km are given for Ky = .0000 and .0003 (M.P.H.units). These curves are averages of the Km, at these values of Ky of alarge number of different…
