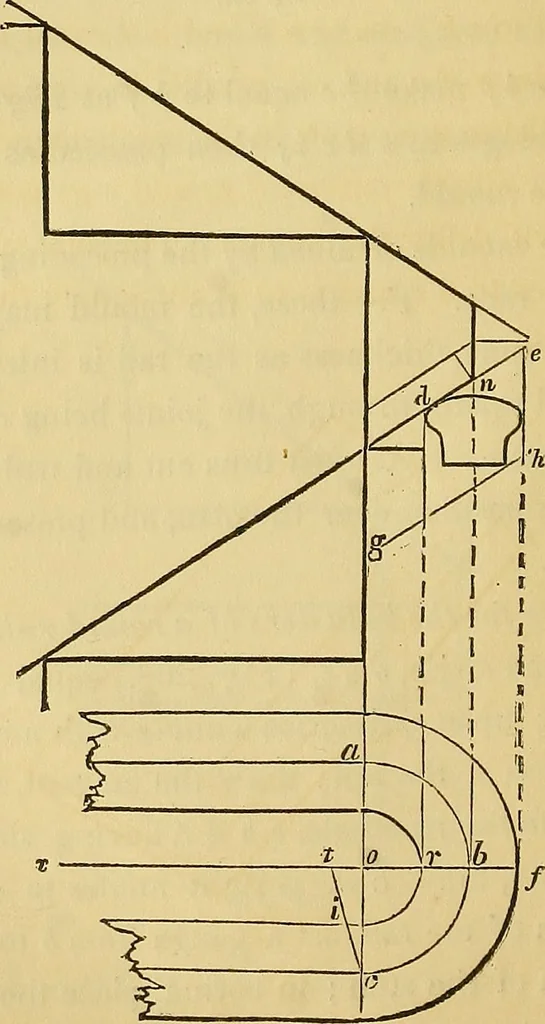

bit in the gauge-mark at a, and bore in the direction, a c. To dothis easily, make chucks as represented in the figure, the bottomedge, g A, being parallel to o c, and having a place sawed out, ase f, to receive the rail. These being nailed to the bench, the railwill be held steadily in its proper… … Fig. 269. st-AiRS. Sir ^73.— To obtain^ by the foregoing principles^ the face-mouldfor the twists of a moulded rail upon platform stairs. In Fig.269, a b c is the plan of a line passing through the centre ofthe rail around the cylinder as before, and the lines aboveit are a vertical section of…
