Structural mechanics : comprising the strength and resistance of materials and elements of structural design, with examples and problems (1907)
Greene, Charles E. (Charles Ezra), 1842-1903, Greene, Albert Emerson · New York : John Wiley & Sons ; London : Chapman & Hall · leaf 218

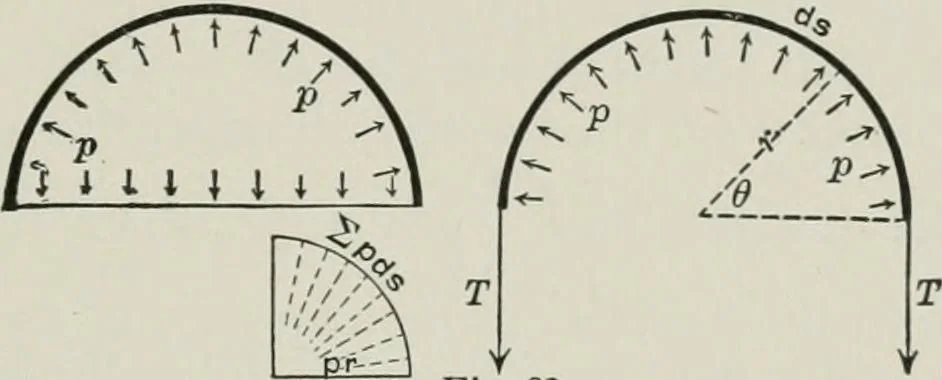

ust resist 52,000 lb. ten-sion per linear foot. If the unit working stress for the shell is 12,000lb. and the other stresses as above, what size of rivet is best, for tripleriveting, what the pitch, and the thickness of the shell? CHAPTER XIII. ENVELOPES. 192. Stress in a Thin Cylinder.—Boilers,… … Fig. 82 the equilibrium of the half cylinder, which is illustrated on theleft. It is evident that, for unity of distance along the cylinder,the total pressure on the diameter, 2pr, must balance the sumof the components of the pressure on the semi-circumference ina direction perpendicular to the…
Mechanics · Structural analysis (Engineering)
