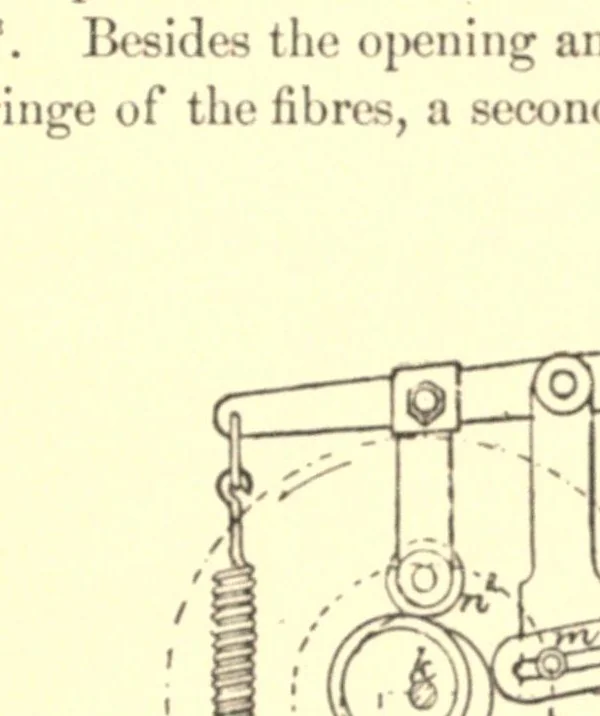

. The same is shown separately in Figs. 262 and 263, and receives three combined, separate and distinct motions — a vertical one, a hori zontal one and a change in the position of the points of its teeth from a straight line (Fig. 262) into a curved one (Fig. 263). The first is produced from the… … FIG. 262. as possible a perpendicular position, close to the rtlpjxT mouth and takes off the tuft of fibres; then changing its straight form into a curved one, approaches the comb-ring A, upon which it deposits the fibres in nearly a horizontal position, withdrawing from there so as not to disturb…
