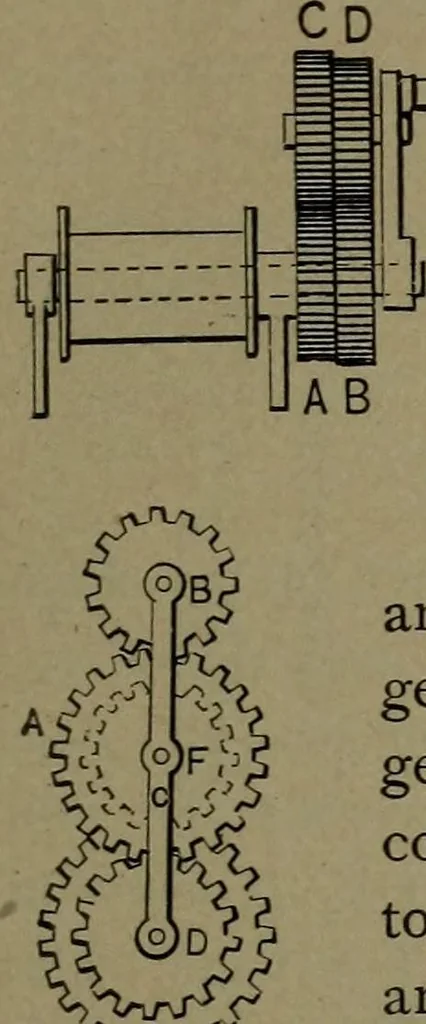

984. HIGH-SPEED EPICYCLIC TRAIN.— Bevel gear C is the driver; m / is a fixedshaft. Bevel pinion D and spur gear E are fixedon a hollow shaft. Bevel pinion A and spur gearH are fixed on a hollow shaft, revolving on thehollow shaft I. The arm m n revolves freely onthe fixed shaft m p. The spur wheels… … ^Va^^^-J at D. A planetary 985. SUN AND PLANET WINDINGGEAR.—A is fixed to the frame ; B is keyedto the barrel shaft. The crank is loose on theshaft and carries a stud on which the differen-tial gear C, D revolves. 986. EPICYCLIC GEAR TRAIN.—C is the trainarm which may revolve around its centre at…
