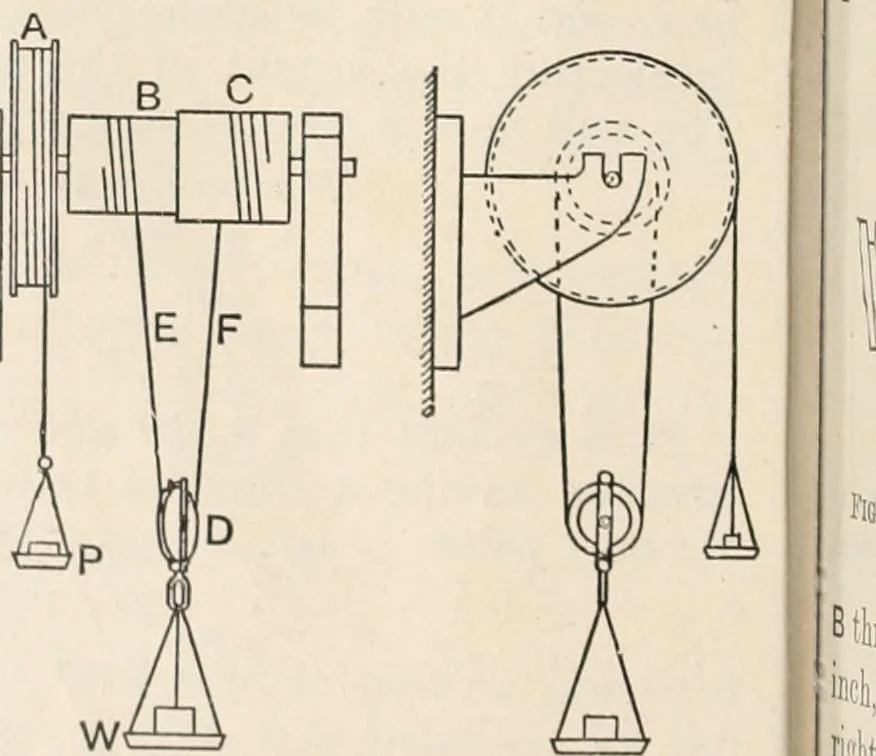

set of helical blocks is shown in outline in Fig. 222. The pulley A is operated by hand bymeans of an endless chain,and rotates a worm B. Theworm is simply a screw cuton the spindle, and engageswith the teeth on a worm-wheel C. Each revolution ofB causes one tooth on C toadvance ; hence, if there… … FRONT ELEVATION END ELEVATION FlO. 221.—Wheel and differential axle. XIV SCREWS 193 then P will advance a distance «CLA for one revolution of C. The chain sustaining the load W is fixed at E to the upper block, passes round F, and then is led round D, which has recesses fitting the links in order…
