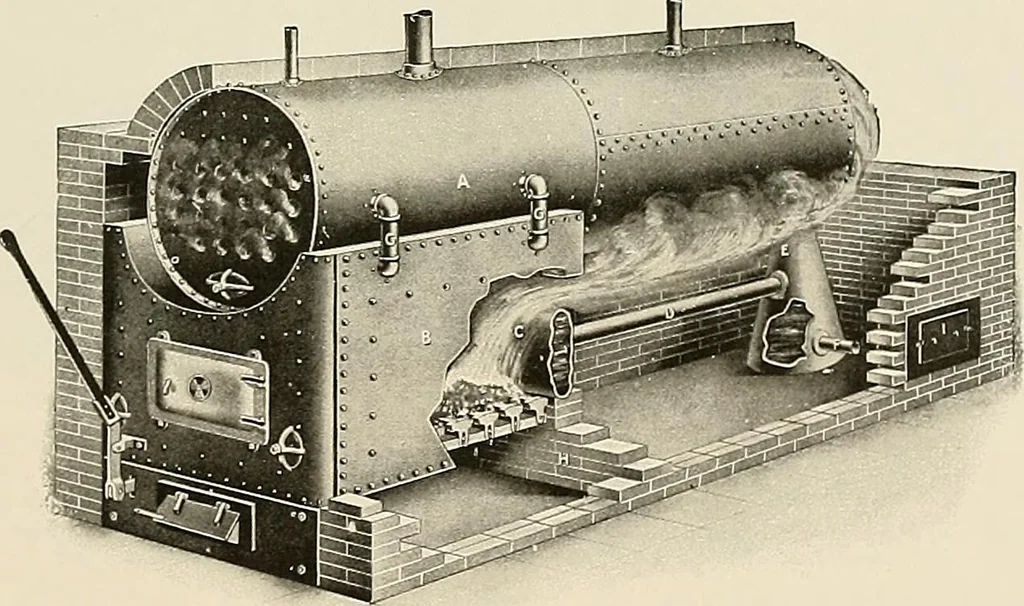

that will not burnout; the magazine being entirely surrounded by water. (See Fig. 4.) This boiler with detachable fire box has all the advantages of the tubular boilerand of the locomotive fire box, obviating the weak points of each. It dispenses with the fire brick of the tubular boiler and… … Fig. I. HERBERT DETACHABLE FIRE BOX BOILER When specifying Herbert Patent Boilers, care should be taken to state number,size and capacity. Detail blue-prints showing construction and setting, furnished onrequest. Continued on Next Page HERBERT BOIIER COMPANY 576 BOILERS AND WATER HEATERS, ETC.…
