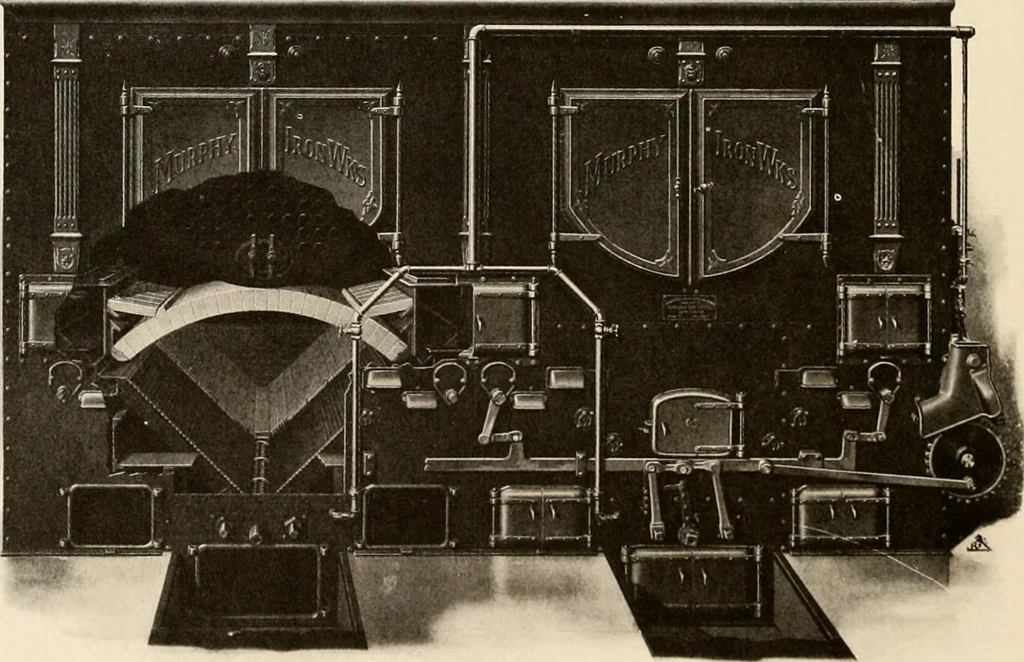

ling or radiating surface. The actuating mechanism isentirely outside of the furnace. All the iron parts are of ample strength. The ar-rangement for lubrication (where it is necessary) is complete; all bearing surfaces areliberal and no moving parts are subject to undue wear. The weight of iron in… … DIRECT FRONT VIEW SHOWING SECTION OF TUBULAR BOILER SETTING, AND FULL FRONT CoTtlinueJ on Next Pa^e SMOKELESS FUENACES 583 MTJRPHY IRON WORKS DESCRIPTION. GRATES. FURNACESOPERATED BYSMALL ENGINE. At either side of the furnace, extending from front to rear, is a coal magazine intowhich the coal may…
