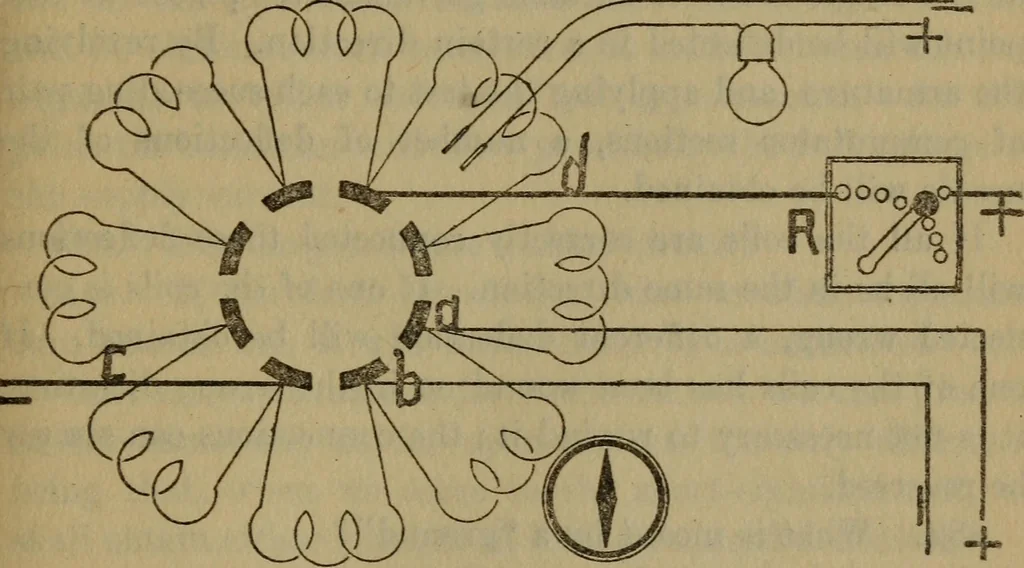

mutator,or by abnormal heating of the armature. Armature Troubles 149 880. What are the causes of such troubles ? Arts. They may result from any one of the followingcauses: There may be a wrong connection of one, or moreof the coils. Some of the coils may be grounded. Theremay be an open circuit.… … Fig. 546 881. How can a wrong connection of the coils be testedfor? Arts. In order to see how this test can be made let usconsider Fig. 546 for a moment. This figure shows thewiring of an armature connected to the commutator seg-ments exactly as it would be if it were taken off, and thecoils…
