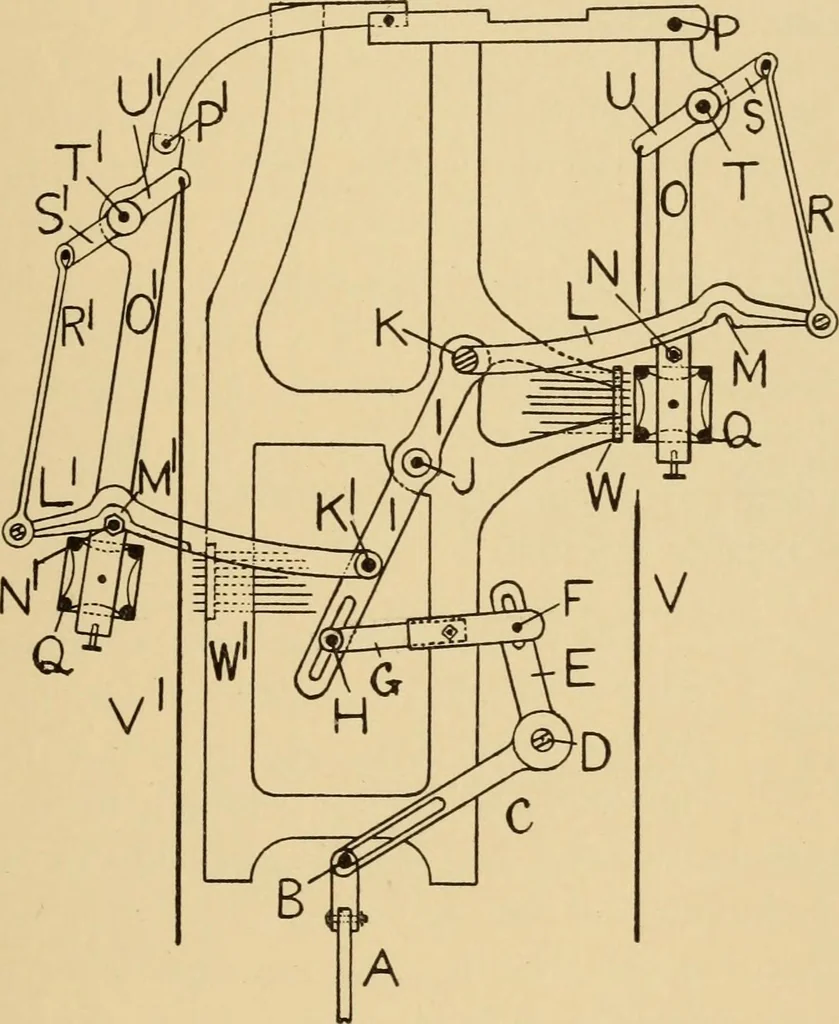

od a with a CROSS BORDER JACQUARD MECHANISMS. II9 lever c screwed to the shaft d which extends across the length ofthe machine and near its base, e is a lever set screwed at rightangles behind c to the same shaft d. An adjustable stud f com-bines the lever e with the link g which in turn is… … - Fig. 114. formed, which is free to lock as required with a suitably formedstud n, securely fixed near the base of the swing batten lever o,pivoted to a fixed bracket projecting from the top of the Jacquardframework at p. The position of the card cylinder is shown at q.The extremity of the arm l…
