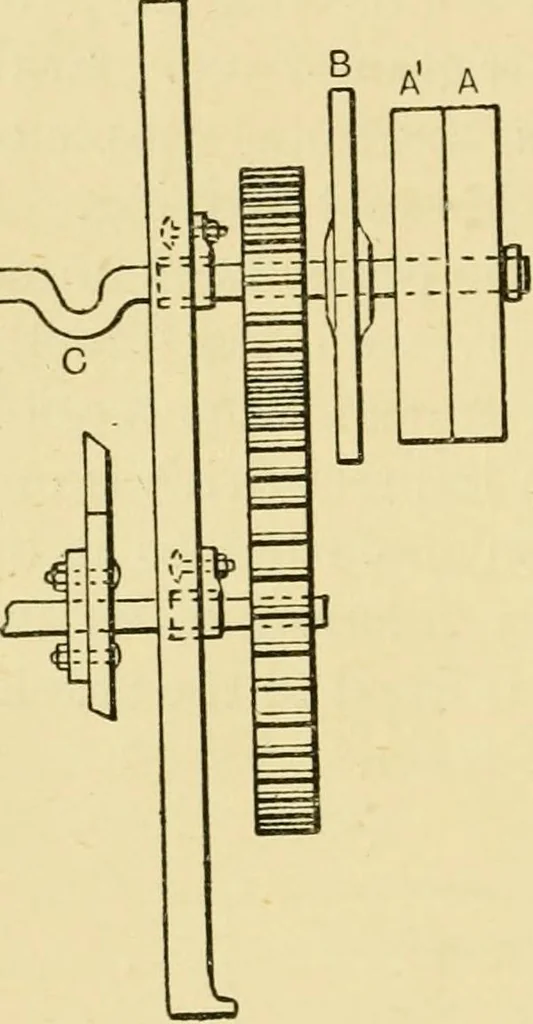

aft H ; thespur wheel K is secured to the crankshaft. When thebelt is transferred from the loose to the fast pulley,motion is transmitted to the picking-shaft by means ofthe sleeve D and the spur wheels E and F; the crankshaftin turn receives motion from the picking-shaft by meansof the spur wheels… … Fig. 4. ECCENTRIC DRIVING WHEELS 13 ^ a
