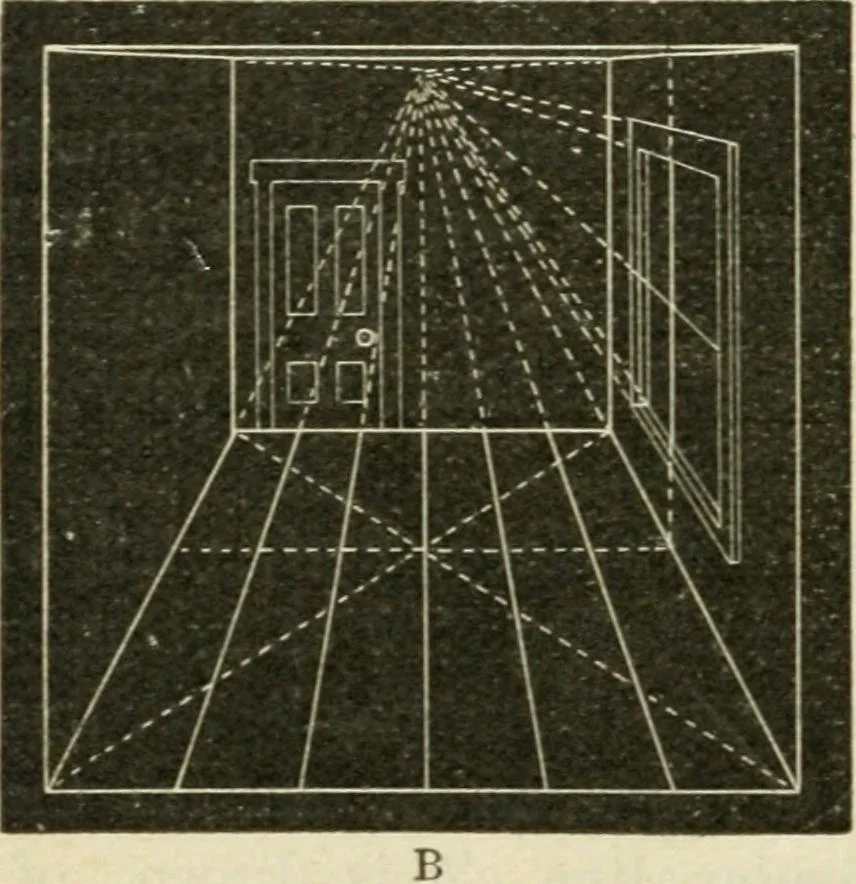

s, shown incut B. Observe thatall the converginglines, being in realityparallel.—those of thefloor and windows, aswell as main lines ofthe room, — wouldraeet, if prolonged, as indicated by the dotted lines,at a common point, which is on a level with the eyeof the spectator. Observe that the centre… … MODEL AND OBJECT DRAWING. 253 pie illustrations, and to be remembered. Observethat in Fig. 3, cut A, the line cd, ^yhich is really ofthe same length as «6, is represented shorter, be-cause it is at a greater distance from the eye. Forthe same reason, the line c7i, which is really of thesame length…
