The technic of mechanical drafting a practical guide to neat, correct, and legible drawing (1904)
Reinhardt, Chas. William (Charles William), b. 1858 · New York, The Engineering News Pub. Co. · leaf 17

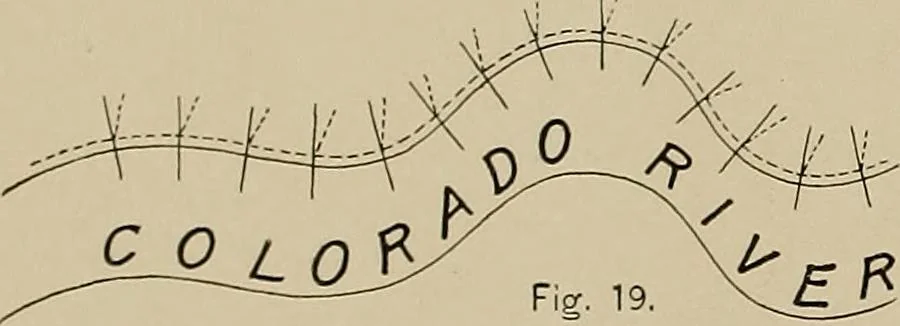

outh. demonstrates to fsj ew YORK St AT EL FOREST RESERVE. what extent such KA , c R . , Manhattan ouspension - Bridge,styles maybe _, utilized on one and the same drawing, for the purpose of giving to some parts more prominence than to others. Lettering on curves, as in map work along a sinuous… … ing is to be used to designate such curves, allowance will have tobe made for the angle of such downstrokes with the vertical, as Fig.19 illustrates. Where the curvature of a river-course is at pointstoo sudden to admit of an easy continuous curving of its name alongits side, such portions may be…
Mechanical drawing
