Technology of textile design. Being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving (1888)
Posselt, Emanuel Anthony, 1858- · Philadelphia, Pub. by the author [etc.]; London, S. Low, Marston, Searle & Rivington, limited · leaf 119

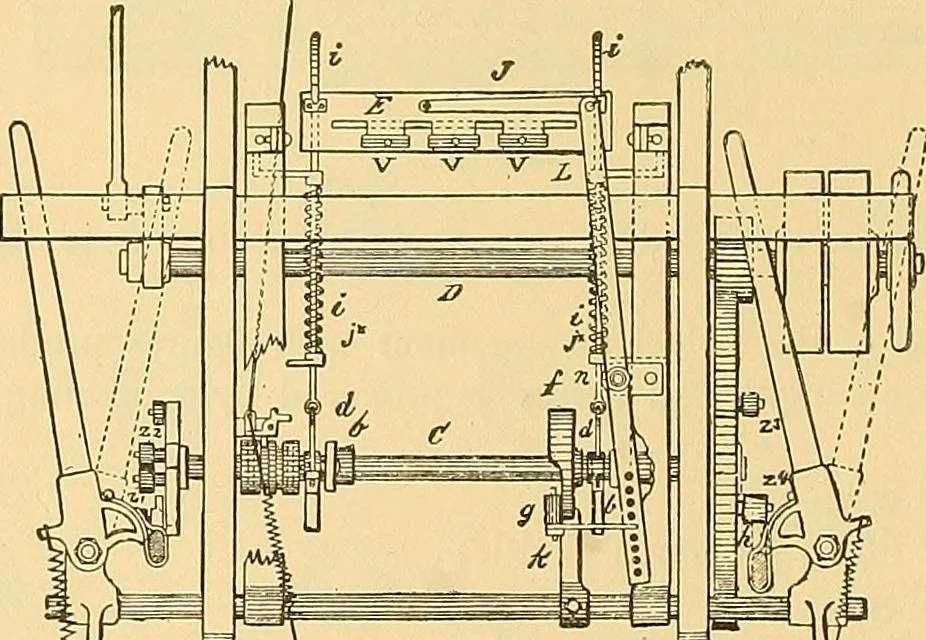

ill occupy the positionshown in Fig. 578. The harness and other portions of the loom not essential to a full under-standing by the student are omitted from the drawings. By the shifting of the cam-shaft a newset of cams and levers is brought into action, and the operation of certain of the devices… … Fig. 579. The new cams and levers thus brought into play, acting in connection with the devices whichremain in operation after the shifting of the shaft, as stated, give the second movementpreviously mentioned—namely, the combined plain and swivel movement. In diagram Fig. 579 the front view of the…
Textile design · Textile fabrics
