Technology of textile design : being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving : containing also an appendix showing the analysis and giving the calculations necessary for the manufacture of the various textile fabrics (1892)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia : E.A. Posselt ; London : Sampson Low, Marston, Searle & Rivington, Ltd. · leaf 217

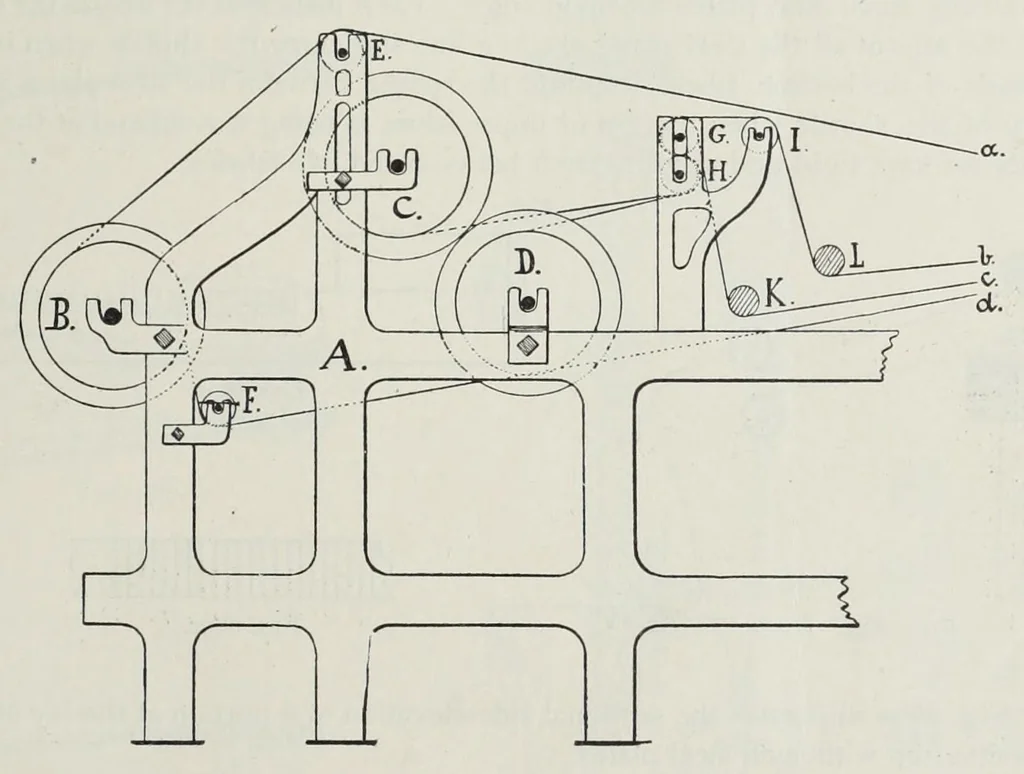

the frame, as built in addition to his regular cam loom for operating the harness. The beams carrying the pile warps rest in the upper middle part of said frame. To give a clearer understanding diagram Fig. 882 has been designed. In this A indicates the side of the frame previously alluded to, B… … Fig. 882. rollers H G, and from there to the respective harness, one great advantage over that of the pre- viously shown methods will be readily noticed, i. e., that the pile warps are delivered to their respective heddles without crossing the ground system, and consequently any possible chafing is…
Textile design · Textile fabrics · Weaving
