Technology of textile design. Being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving. Containing also an appendix showing the analysis and giving the calculations necessary for the manufacture of the various textile fabrics (1889)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, Pub. by the author [etc.]; London, S. Low, Marston, Searle & Rivington, limited · leaf 114

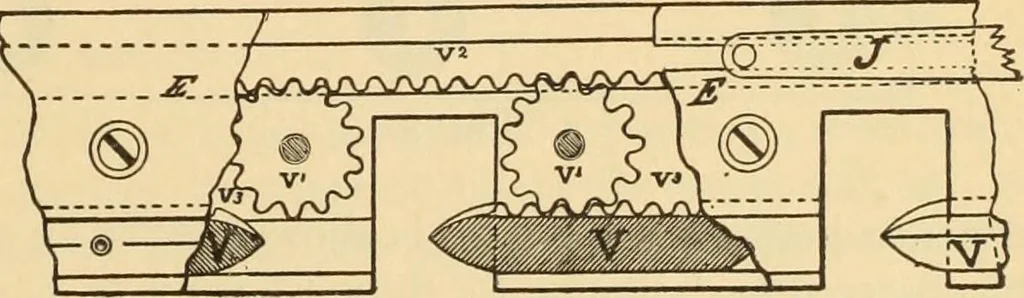

f weaving by floating the filling on the back when not requiredfor figuring on the face. There is a further advantage in the designing, for no disturb- r / (_ ance of the design is necessary. Again, in cases where, in the ordinary process of weaving, the figure-filling would show through on the… … ?• no Fig. 573 is an illustration of a swivel fitted in a movable frame to be attached to the regularbatten of a loom. The method of weaving fabrics figured by the swivel arrangement is as follows: After thecommon shuttle carrying the ground fillingis interwoven, a separate shed of the warp…
Textile fabrics
