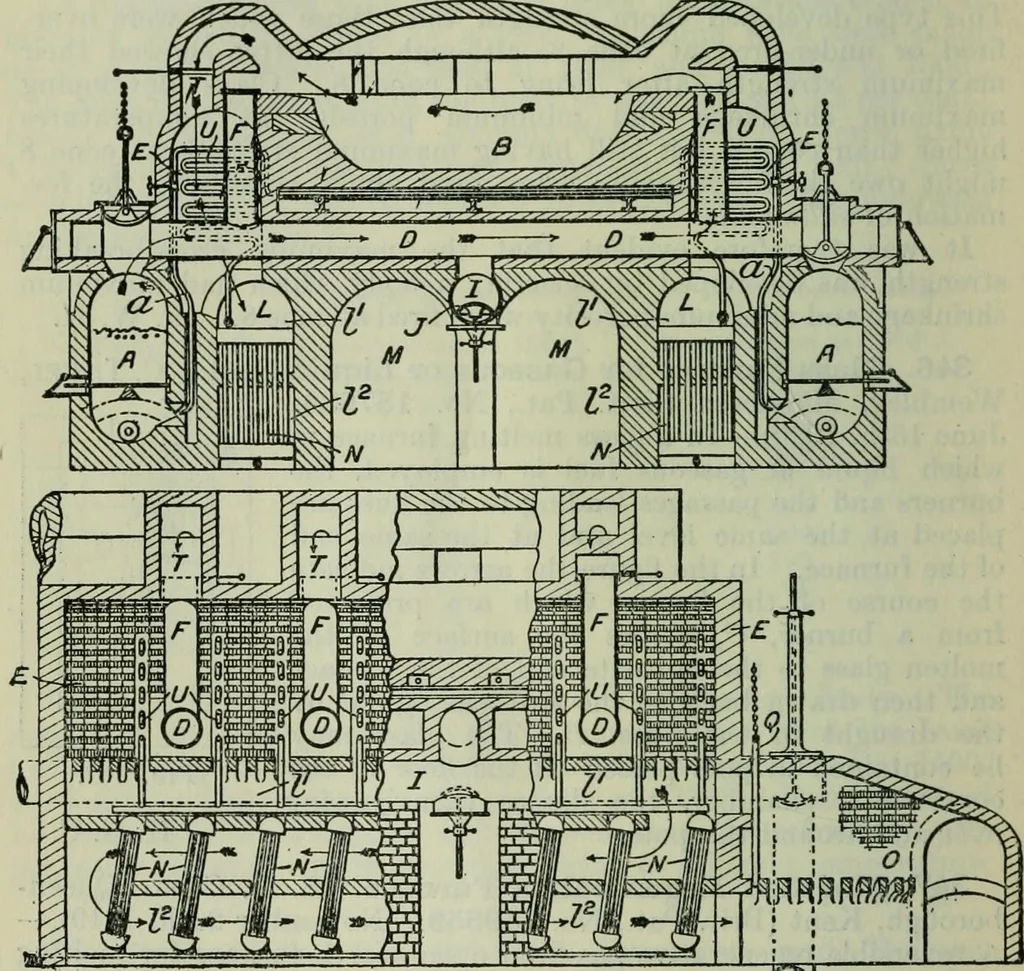

and lower flues, I2, in which are located steamboilers, N. The gases pass from the flues, lz, into a regenerator, O,and thence to the chimney. On reversal of the course of thegases through the furnace the damper, Q, Fig. 158, is lowered andair passes to the upper flue, I1, of the lower… … i^sr Fig. 158. pipes, a, located in the brickwork of the producers, A, where it be-comes further heated, to the ash-pits of the producers. Accordingto a modification, steam from the pipes, a, discharges into mixing-chambers into which hot-air from the chambers, M, beneath themelting-tank is drawn,…
Glass
