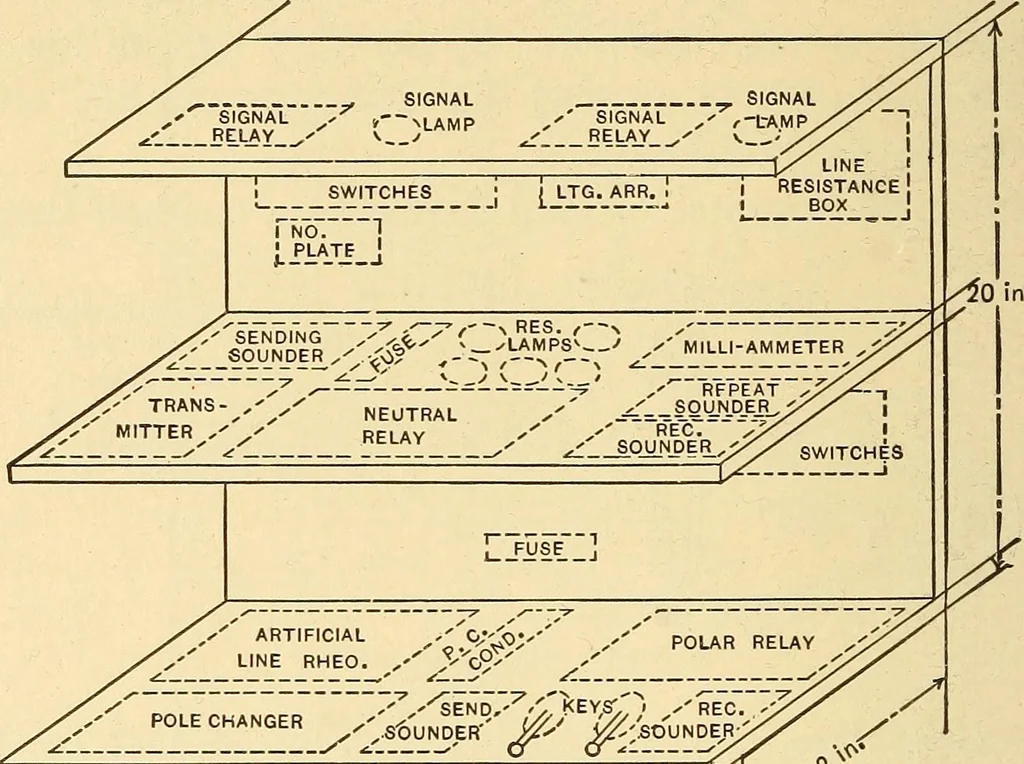

duplex repeater set about 33 inches of table length. The location of the apparatus of a Western Unionquadruplex set on this table is generally as indicated in 146 TELEGRAPH ENGINEERING the figure, the upper shelf being reserved for signallingpurposes. The unit-section instrument tables used by… … y XsEND, /O. ^EY,s^ ; ,^REC. Xy^ ~P, RETARDATION COILS -22 in.- -^ Fig. 9. Attendants constantly oversee the operation of suchduplex, quadruplex and repeating apparatus, each attend-ant having supervision of a certain number of sets. 6. Power Switchboards. — A switchboard for a tele-graph power…
