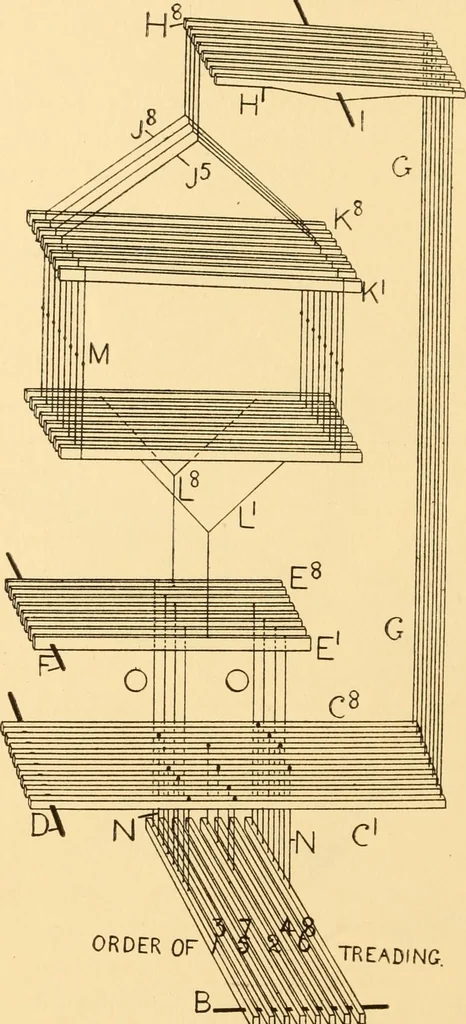

e the treadles, each of which is free to oscillate about the fulcrum pin b. c1 to c8 are long levers fulcrumed at d ; these were commonly called marches. e1 to e8 are short marches free to move about the point f. g indicates connecting cords between the levers c and h. h1 to h8 are known as jack… … A /234567c? Fig. 38. the heddles, k1, k8 as shown. The lower staves of the heddles aresimilarly connected by bow bands l to the short levers e in corres- HAND LOOM WEAVING TREADLE SHEDDING. 35 ponding arithmetical order. The heddle, harness and mails areshown at m. Each treadle must be so connected…
