A text book of geometrical drawing : abridged from the octavo edition : for the use of schools in which the definitions and rules of geometry are familiarly explained, the practical problems are arranged from the most simple to the more complex, and in their description technicalities are avoided as much as possible : with an introduction to isometrical drawing : and an essay on linear perspective and shadows ... (1849)

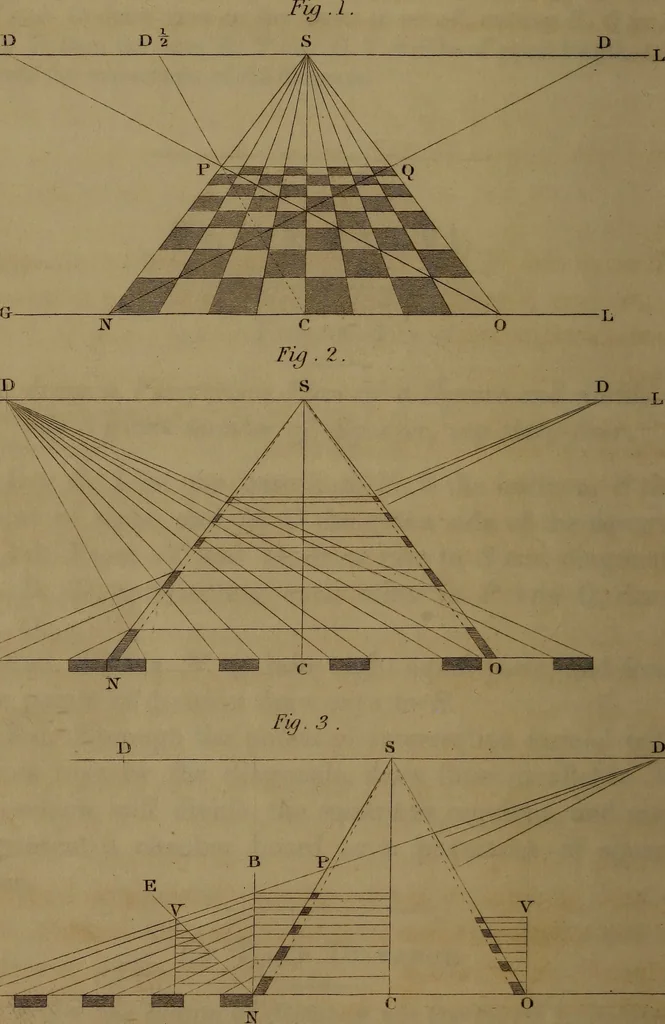

ersection formed withthose rays by the diagonals, draw lines parallel to JV*.0, which will divide the square as required, and mayrepresent a checker board or a pavement of squaretiles. Of Half Distance. When the points of distance are too far off to be usedconveniently, half the distance may be… … M M - Mimfu iinicin 7c .Jens. PLATE XXXVI. Ill 0 the opposite side of the square, to the whole distanceat jD. Note.—Any other fraction of the distance may be used, pro-vided that the divisions on the base Hne be measured proportion-ately. Figure 2. To draw the Plan of a Room with Pilasters at its…
