A text-book of geometrical drawing, for the use of mechanics and schools, in which the definitions and rules of geometry are familiarly explained .. (1850)

Minifie, William, 1805-1880. [from old catalog] · Baltimore, W. Minifie & co. · leaf 109

An illustration from A text-book of geometrical drawing, for the use of mechanics and schools, in which the definitions and rules of geometry are familiarly explained .., 1850, leaf 109

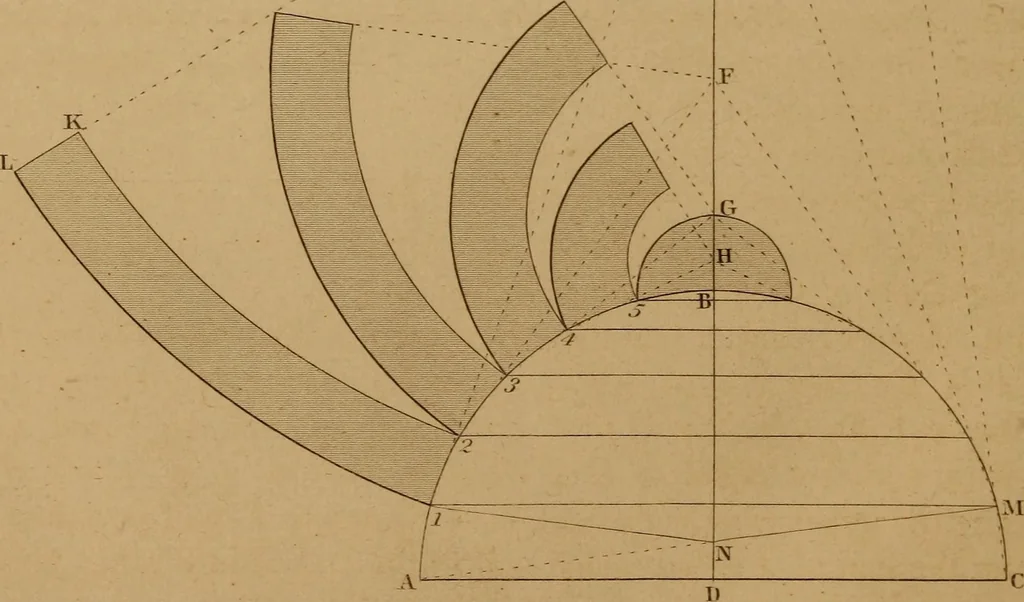

Fu/. ■^. … ft^MjT.int PLATE XXIII. 53 from the points of division^ draw lines parallel to A. C, meetingD. 0 in 1, 2, 3, &c. 3rd. With an opening of the dividers equal to one of the divi-sions on B. C, step off from D toward H, the same number ofparts as D. C is divided into^ making the right line D. H,…

Mechanical drawing · Geometry, Descriptive · Perspective
