A text-book of geometrical drawing, for the use of mechanics and schools, in which the definitions and rules of geometry are familiarly explained .. (1850)

Minifie, William, 1805-1880. [from old catalog] · Baltimore, W. Minifie & co. · leaf 97

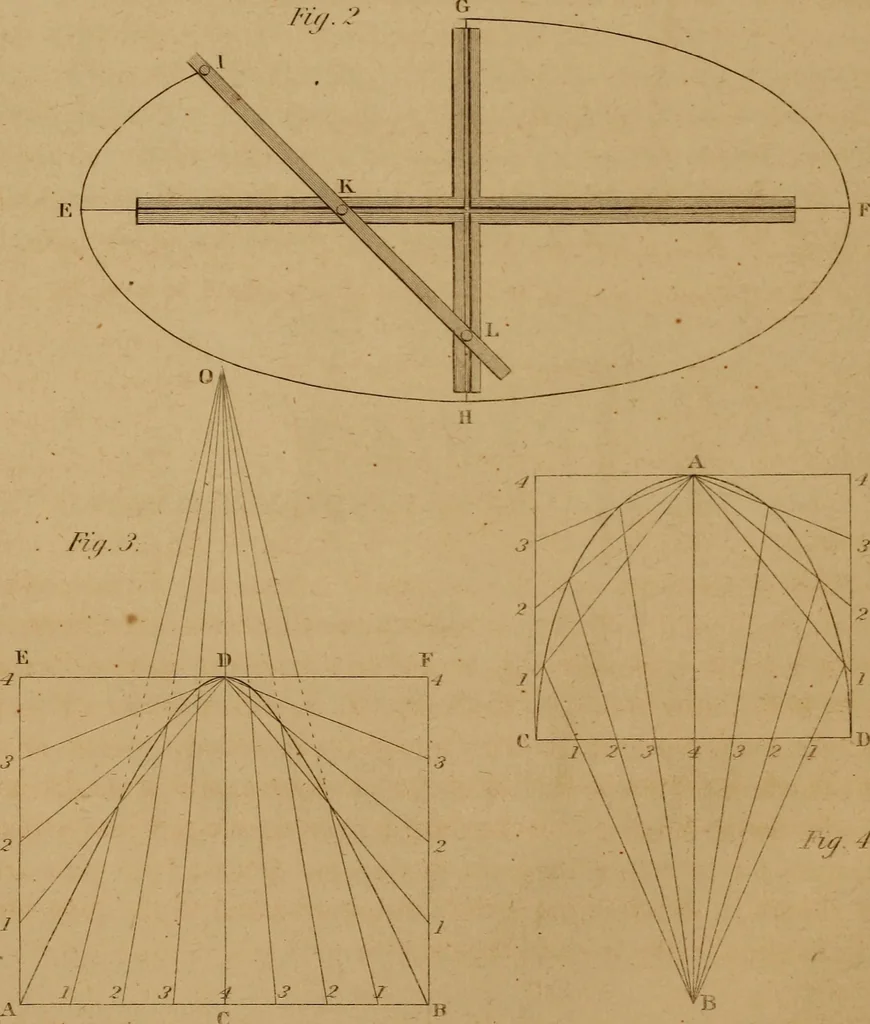

An illustration from A text-book of geometrical drawing, for the use of mechanics and schools, in which the definitions and rules of geometry are familiarly explained .., 1850, leaf 97
Ii^ 4 .W^rWrif^., PLATE XX. 47 4th. From the divisions in A. L and B, M, draw lines to oneend of the conjugate axis at C; and^ from the- divisions in B,0 and Jl. Jfy draw lines to the other end at D. 5th. From D, through the points 1^ 2^ 3^ in A. S, draw, lines tointersect the hnes 1; 2^ 3 drawn…
