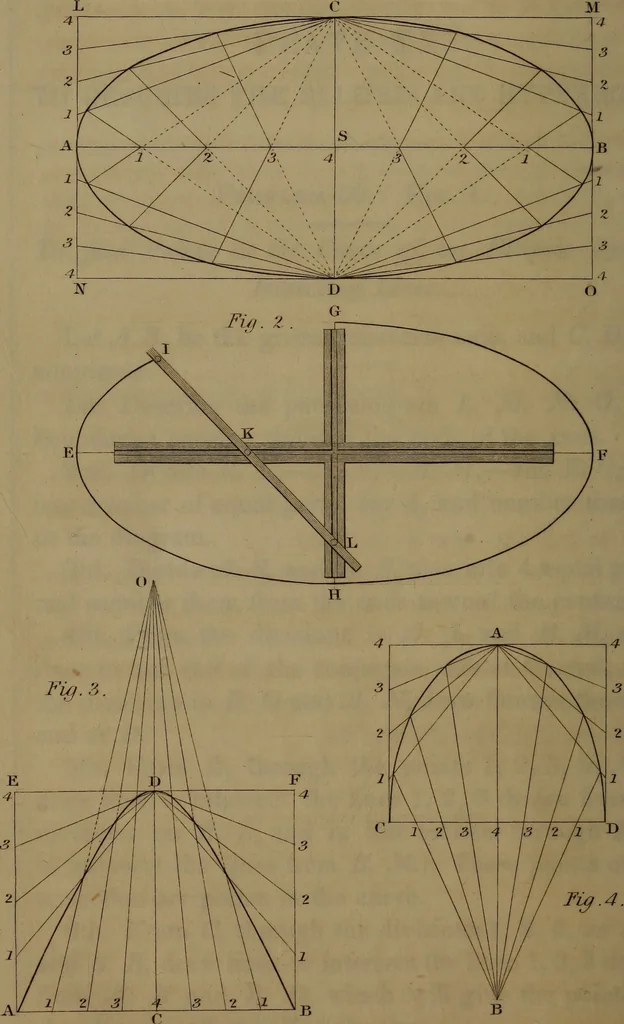

otherend at D. 5th. From D, through the points 1, 2, 3, in A. S,draw^ lines to intersect the lines 1, 2, 3 drawn from thedivisions on A, i, and in like manner through B. S,to intersect the lines from B. M, These points of in-tersection are points in the curve. 6th. From C, through the divisions 1,… … W-MimOe.. IHtnan Ec S nns PLATE XX. 65 7lh. Through the points of intersection, trace thecurve. Note.—If required on a small scale, the curve can be drawnby hand ; but, if required on a large scale, for practical purposes,it is best to drive sprigs at the points of intersection, and bend athin…
