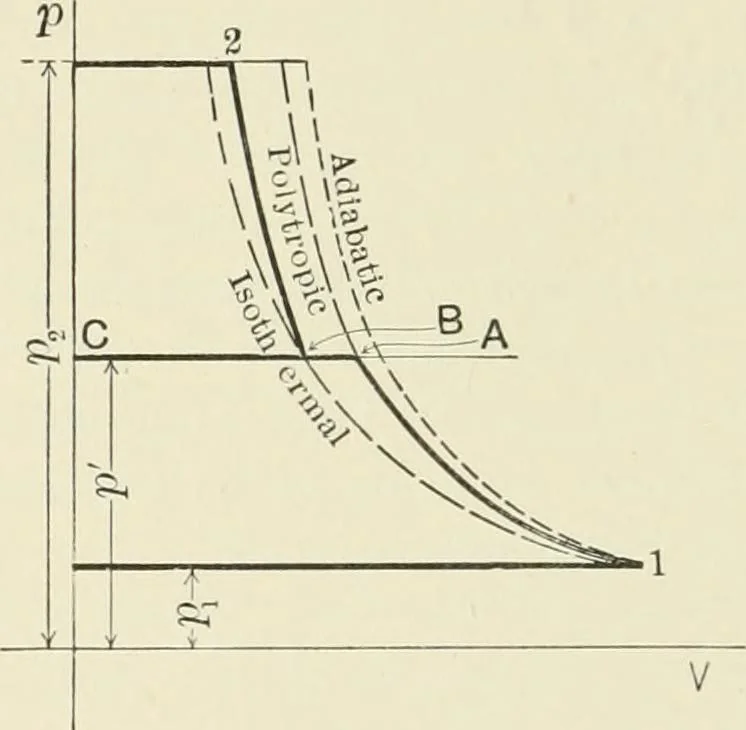

AMICS In two-stage compression the gas is thoroly cooledduring its passage from the first cylinder to the secondone. The ideal conditions (clearance neglected) are shownin Fig. 17. Thru i are drawn an adiabatic, a polytropic,and an isothermal. The area representing the saving ofone-stage isothermal… … Fig. 17. at A (pressure p). As it is impossible to cool the gasthoroly in the cylinder let the gas be expelled fromthis cylinder (along AC) thoroly cooled in an mter-cooler and then returned to the second cylinder (alongCB). This diminishes the volume of the gas from ACto BC but its mass is…
