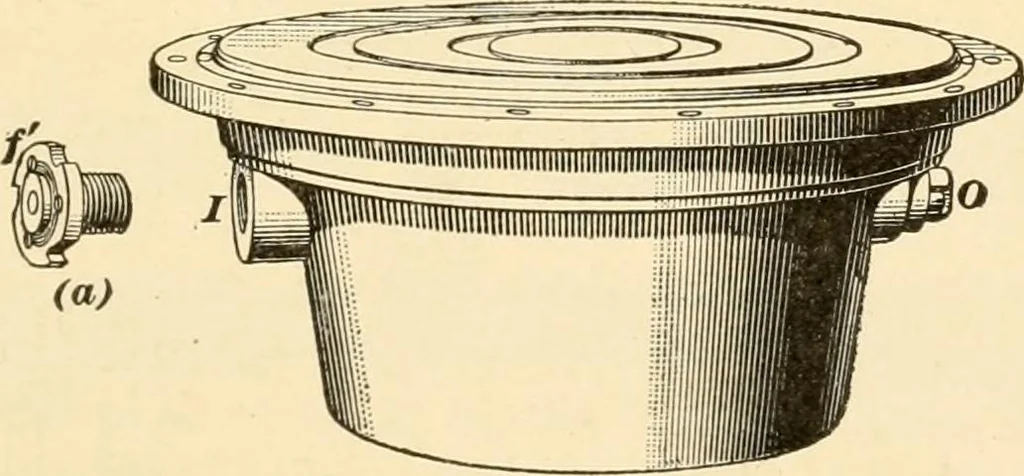

as-tight. The dotted circle behind the valve v is thepassage leading to the filler, the pipe connection being madeby the union u shown in the elevation. There is one of theseconnections on each side of the valve, as seen in Fig. 1. Theconnection to the holder is made by means of the outletbushing… … regulator casting at /, the connection with the high-pressurepiping being made by means of the fitting F shown in Fig. 6.The flange /, Fig. 6, is screwed on to the fitting F, and thenthis flange and the flange /, Fig. 5, are bolted together by three CAR LIGHTING. ^12 bolts. Connection is made at 0…
