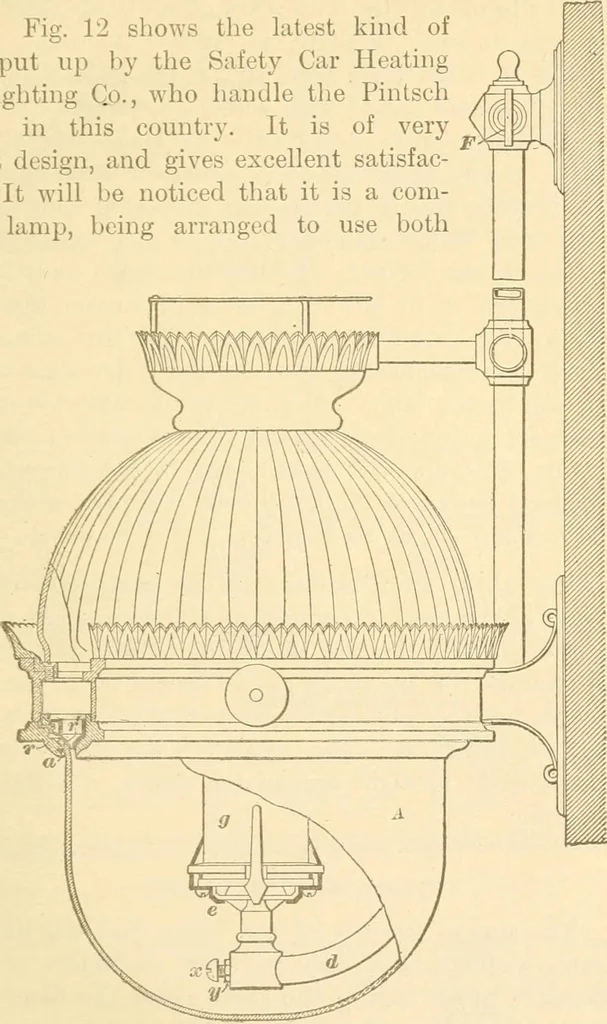

w the path of the escaping hot air and gases after leavingthe flame and bowl. The glass bowl is made air-tight on the §12 CAR LIGHTING. rim liy means of an asbestos wick, the same as in the case ofthe lamp shown in Fig. 10. 14. Fig. 12 shows the latest kind oflamp put up by the Safety Car… … Pintsch gas and also electricity, there being two electric lampsprovided, in case the latter light is desired. In (a) is shown a sectional view of the lamp as made 14 CAR LIGHTING. §12 transversely to the car. (b) is a view at right angles to thefirst, showing the gas arm E. This arm is not seen…
