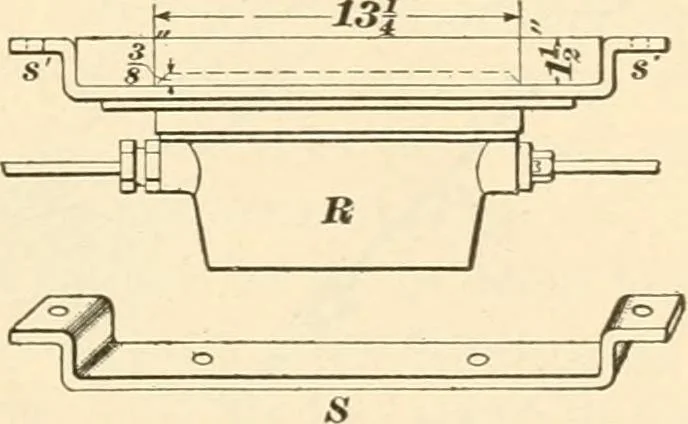

by l|-inch wood screws,a recess f inch deep being cutin one face of the board forthe regulator to fit into. Someglaziers putty is put into theedge of the above-mentionedrecess before screwing up theregulator. The latter is soplaced that its inlet and outlet ^^^ ^^ are in line with the short side of… … 20 CAR LIGHTING. 12 board. The four end screws s pass only through the strap,the four inner ones s passing through both the strap and board.The strap S is also shown separate in lower part of figure. 22. Connections.—The regulator fittings shown in Fig. 6may now be connected to the regulator; they…
