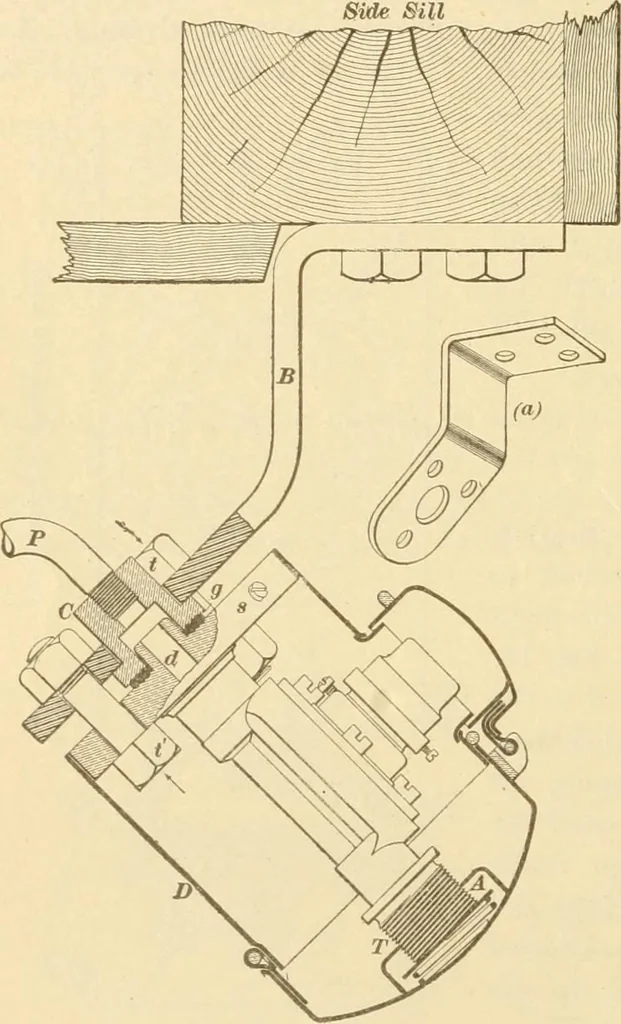

vided.There is a loosebushing in the cen-ter of the flange /,as seen in Fig. 5(a). Be careful tosee that this bush-ing is properly inplace; its duty isto hold the strainerof the inlet bushingin position, as wellas to make the^^ ^^- joint gas-tight. In the regulators now being sent out, however,… … § 12 CAR LIGHTING. 21 riLIilNG-VALVE BRACKET. 23. The brackets B that carry the filHrig valves arefastened to the side sills with three 2^ X 2 lagscrews, asshown in Fig. 19 (see also Figs. 1 and 14). At (a) is shownone of the brackets separately. When locating these brackets, care should be taken…
