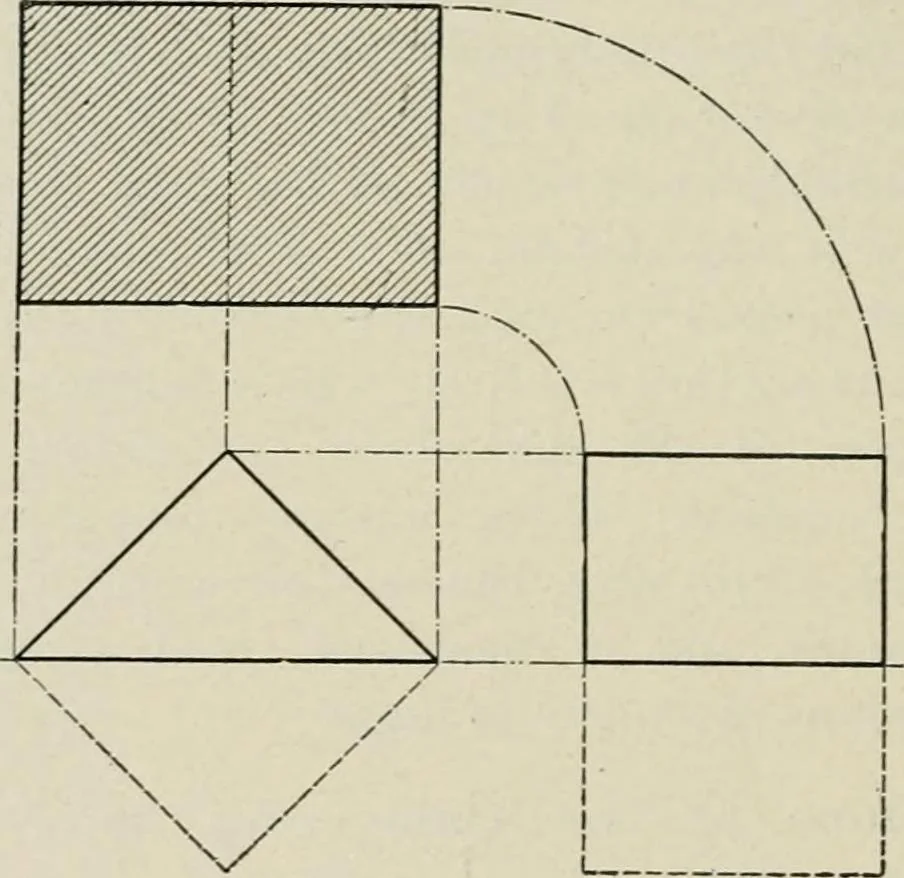

h will beapparent to the student from an inspection of the drawing.Fig. 32 is an oblique section, in which but three sides of thecube are intersected by the cutting plane; in this figure,the full view of the sectional surface is projected. Fig. 33represents a section taken at a still different… … Fig. 31 viezv by parallel lines. Note that in the sectional views ofFig. 33 the opposite edges of the surfaces are defined byparallel lines; thus, since AB and CD are parallel to eachother in the plan of the cube in Fig. 33, so A B and CDare in the same relation to each other in the side…
