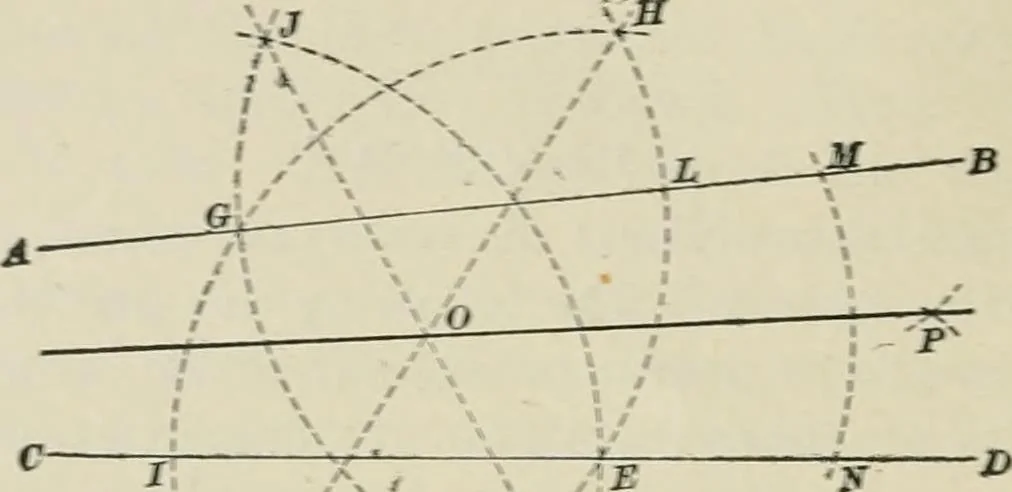

Fig. 37 M. E. I 3i GEOMETRICAL DRAWING 13 point -£ on C D a.s a. center and any convenient radius,describe arc FIG H\ with 6^ as a center and same radius,describe arc HLEF, intersecting/^/6^//^in HsindF. WithZ as a center and same radius, describe arc KGJ- with /as … Fig. 38 a center and same radius, describe arc /E K, intersectingK GJ in K and J. Draw HE and./ K\ they intersect at O,a point on the bisecting line. With (9 as a center and thesame or any convenient radius, describe an arc intersectingA B and C D xn M and A. With M and .A as centers andany radius…
