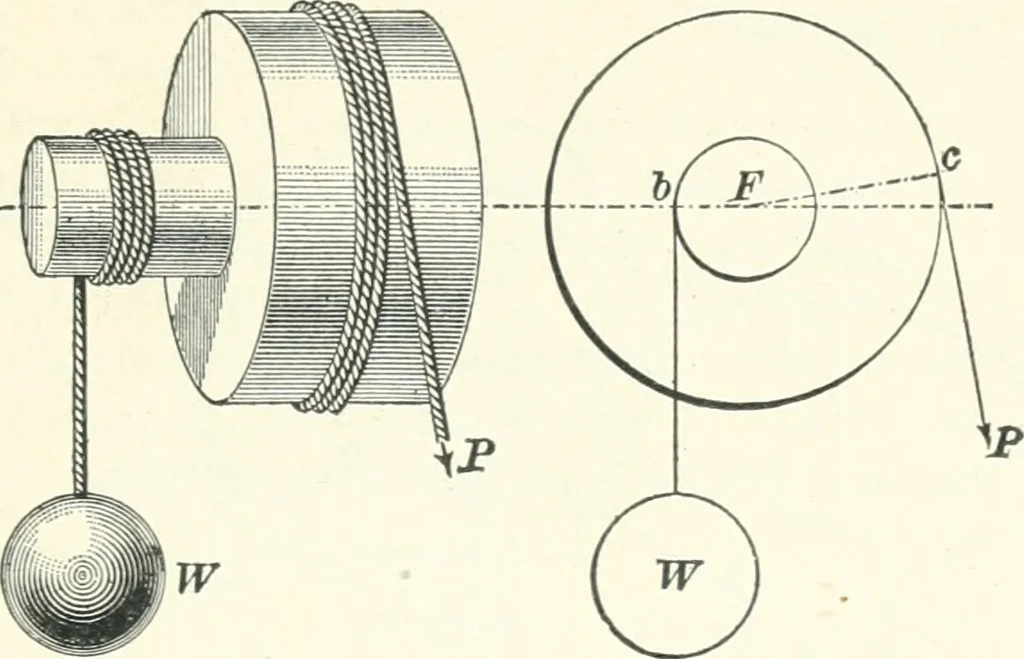

, and 18 inches,(a) how great a force must be applied at the free end P to raise 1,000pounds at ^F? (i^) What is the ratio between/ and /F? Solution.— /• x 24 x 18 X 30 = 1,000 x 6 x 6 x 18, _ 648,000 rn ^ A or P — ^, ,„.„ = 50 pounds. Ans.12,960 50 :1,000 = 1 : 20, or /•: W^= 1 : 20. Ans.… … Fig. 143. before, P X distance through which it moves ■=Wy, dis-tance through which it moves; and, since these distancesare proportional to the radii of the power cylinder andweight cylinder, PxFc=]VxFb. It is not necessary that an entire wheel be used; an arm,projection, radius, or anything…
