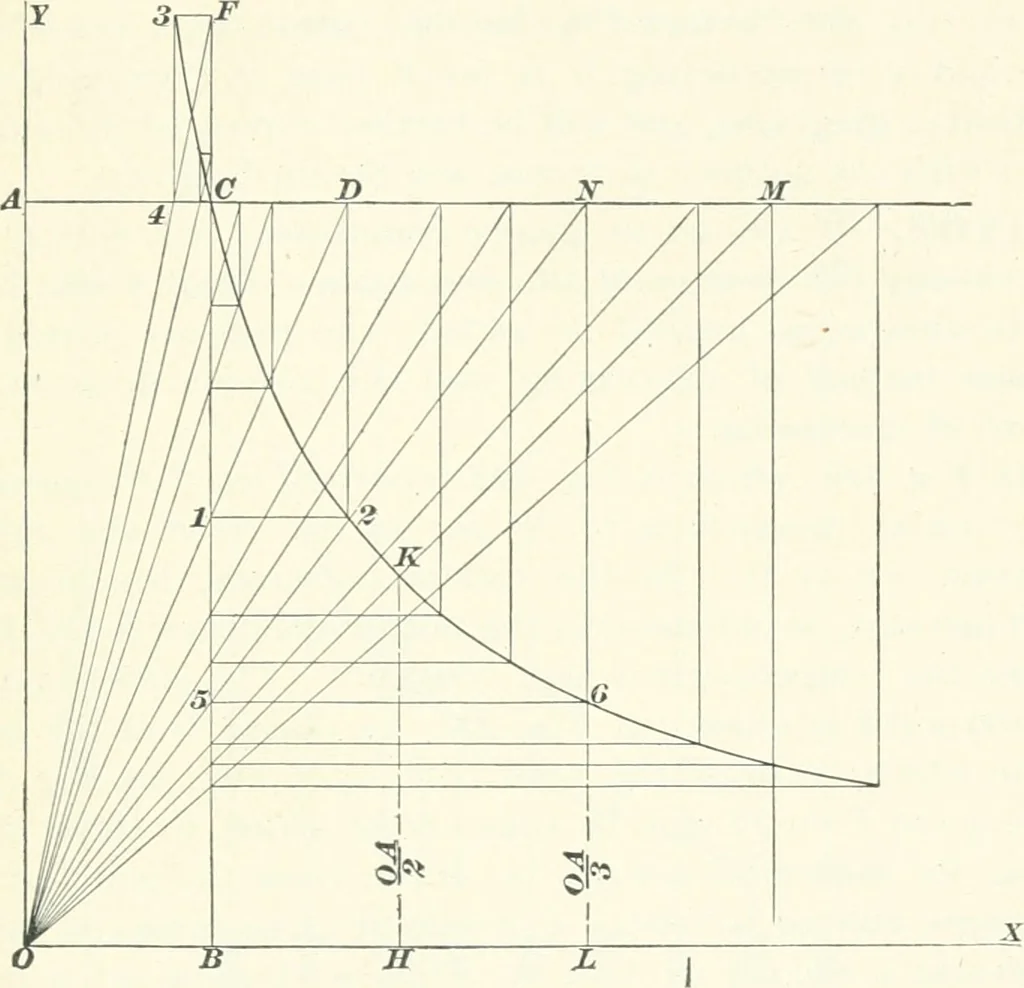

ut calculating the different points, as was HEAT. 495 done in Fig-. 22.3. Thus, in Fig. 227, let O V and O X betwo lines at right angles to each other. These lines areknown in mathematics as the coordinate axes, the lineO Y being called the axis of ordinates, or axis of Y,and the line O X, the axis… … Fig. 227. indefinite Straight line ^/^parallel to the axis of Y. Thepoint C^ where these two lines meet, is the point where theexpansion is to begin; consequently, it is one point on thecurve. Through the point (9, called the origin, and whichis point of no volume and no pressure, draw a number…
