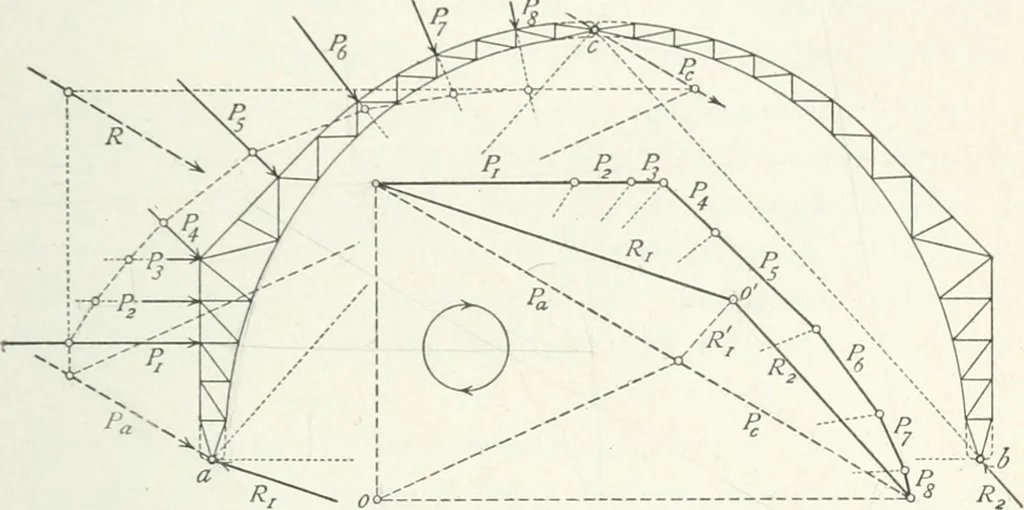

s drawn by means ofthe pole 0. Only a few of the rays are shown. The reactionsdue to P^ are R^ and 7?^ drawn respectively parallel to ac andbe, and the final reactions are R^ and R^. A point in the line ofaction of the resultant is found by producing the first and last Art. 6i. STRESSES IN ROOF… … Fig. 87. Prob. 59. The dimensions of the main arches of the Cleve-land Arcade roof are given in the Engineering Record, March21, 1891. Find the reactions due to a wind pressure of 40pounds per vertical square foot on the roof, including the venti-lator. The normal wind pressure is given in the…
