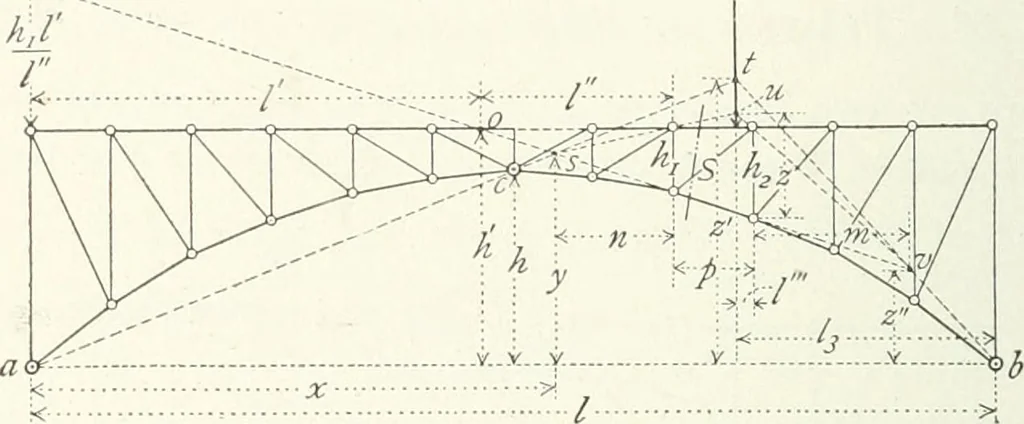

on of the chords cut by the section indicated. On i88 THREE-HINGED ARCHES. Chap. V. comparing the diagram with Fig. 97 it is observed that theconditions are similar, and hence by the same reasoning thefollowing formula is deduced : r py /,. w. This condition may be satisfied by placing a wheel… … Fig. 100. the right. By the same reasoning as in Art. 48 of Part II, thearrow is located and gives the position of a concentrated loadwhich causes no stress in the diagonal .5. This point is thesame as c in Fig. 99. The right half of the arch is subject totwo inclined reactions whose lines of…
