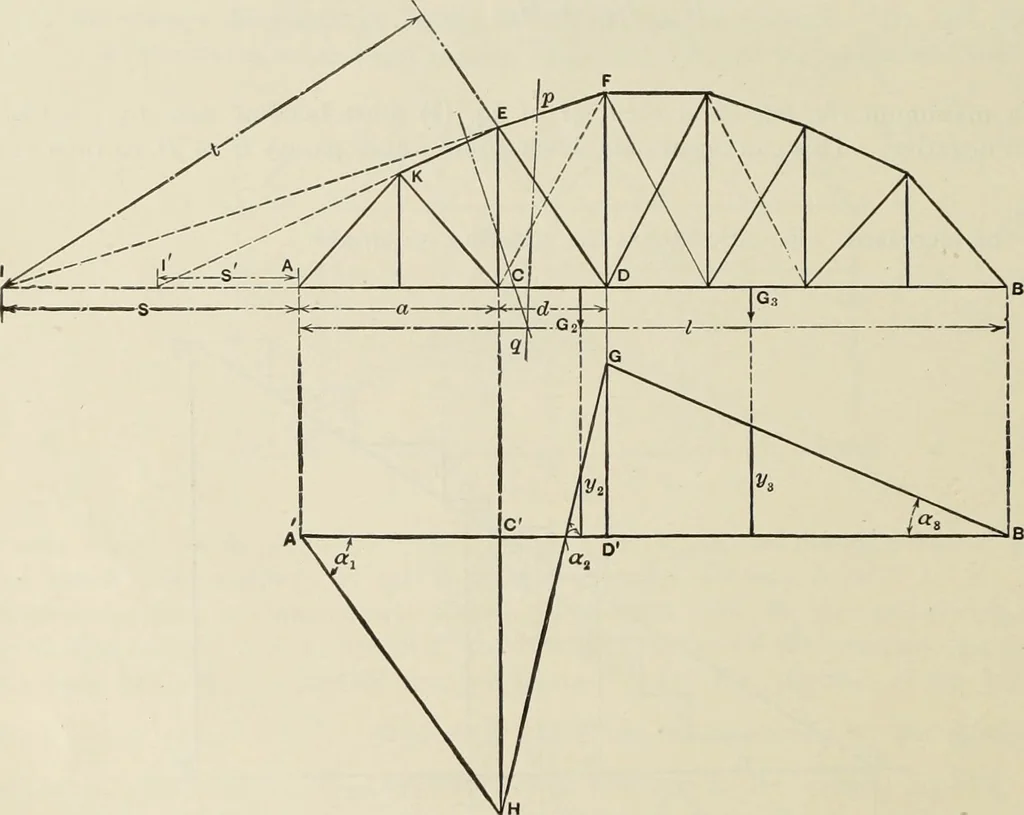

e verticalthrough D with the load line, to the upper and lower limits of the load at E. The position of the loads having been found, the bending moment at C is most readilyfound by proportion from the moments at D and E. Thus if and are the bendingmoments at D and E, respectively, found in the… … Fig. 138 in ED is equal to the sum of the moments about / of all the external forces acting uponthe portion to the left of pq, divided by the lever-arm t. The stress in ED is then a maxi-mum when this moment is a maximum. The influence line for moment at / is readily drawn, after first finding the…
