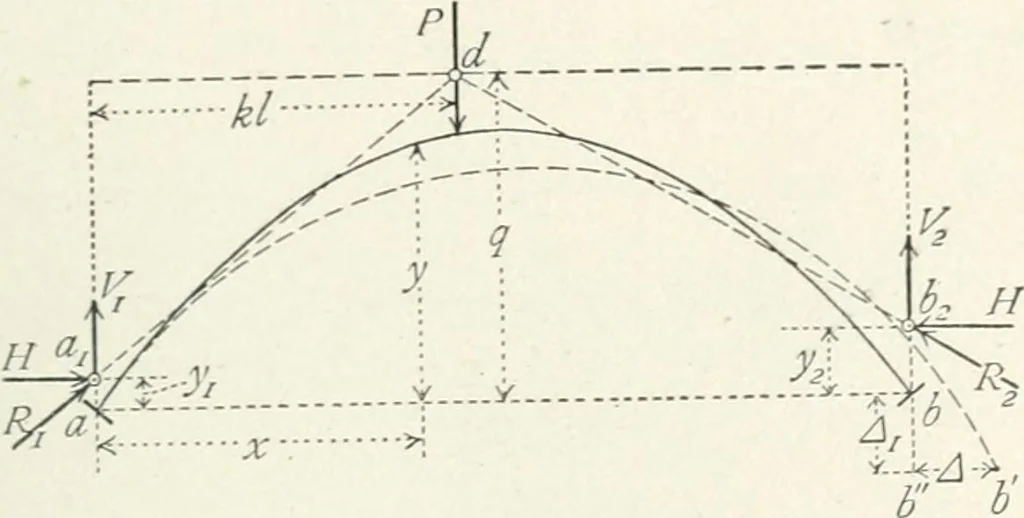

ds have a span / and rise // andbe subject to d load P at a distance /-/ from the left end. Sincethe ends are fixed the reactions R^ and R.^ produce moments atthe supports as in a beam whose ends are rigidly fastened.Consequently the lines of action of the reactions do not passthiough the ends but… … Fig.132 ye, the components F^ and //. The load P is thus held in equilibrium by the vertical forces l\ and V^ and the horizontal forces // and //. Let jl be the height of H above a and j., the height of H above /;. Then, taking moments about a, Pkl- ly - Hy, + //jl = o (i) is the static condition…
