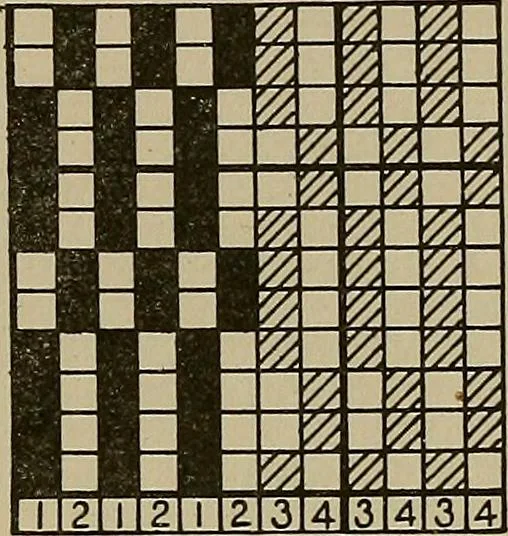

warpends in the change of the rib line, such as using 12 ends forthe first direction of rib line, and then a smaller number for thesecond direction. Fig. 136 is the combination of the4 up and 2 down rib weave, using 6 endsfor each change of the rib line; this makesa broad and a narrow rib line, and… … Fig. 136. FILLING-EFFECT, FIGURED RIB WEAVES. These weaves are designed on the same principle as the warp-effect rib weaves, except that the rib line runs in the direction ofthe warp instead of the filling. Fig. 13T shows the narrow andwide rib weaves combined, the rib line running for 6 picks,…
