Textile design; a working manual of approved practice in all details of the art of designing the various kinds of textile fabrics, together with practical applications of the principles of textile coloring and systematic methods of cost finding (1909)
American School of Correspondence, Umpleby, Fenwick. [from old catalog] · Chicago, American school of correspondence · leaf 56

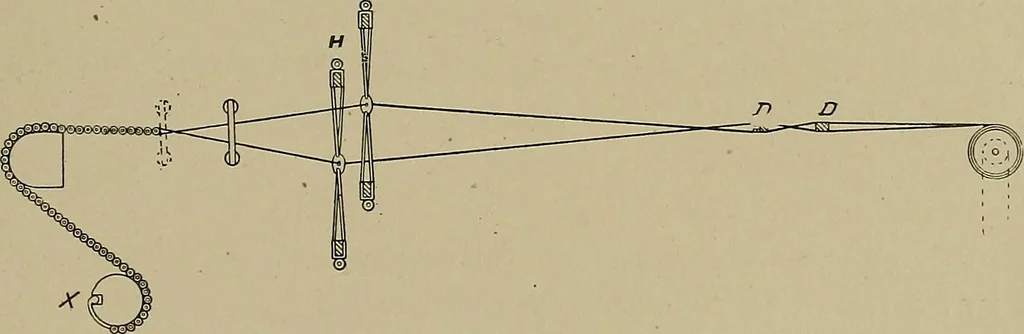

Fig. 62. half of the warp can be alternately raised for the passage of tlieshuttle. The warp is kept in tension by means of weights connected … Fig. 63. to a rope passing once or twice round the warp beam. The clothbeam is provided with a ratchet wheel and pawl M, also with ahandle Z, for winding on the cloth as it is woven. In Fig. 64 only one each of the leeses is shown, but as 91 44 TEXTILE DESIGIS. there must be one to each pair of…
Textile design
