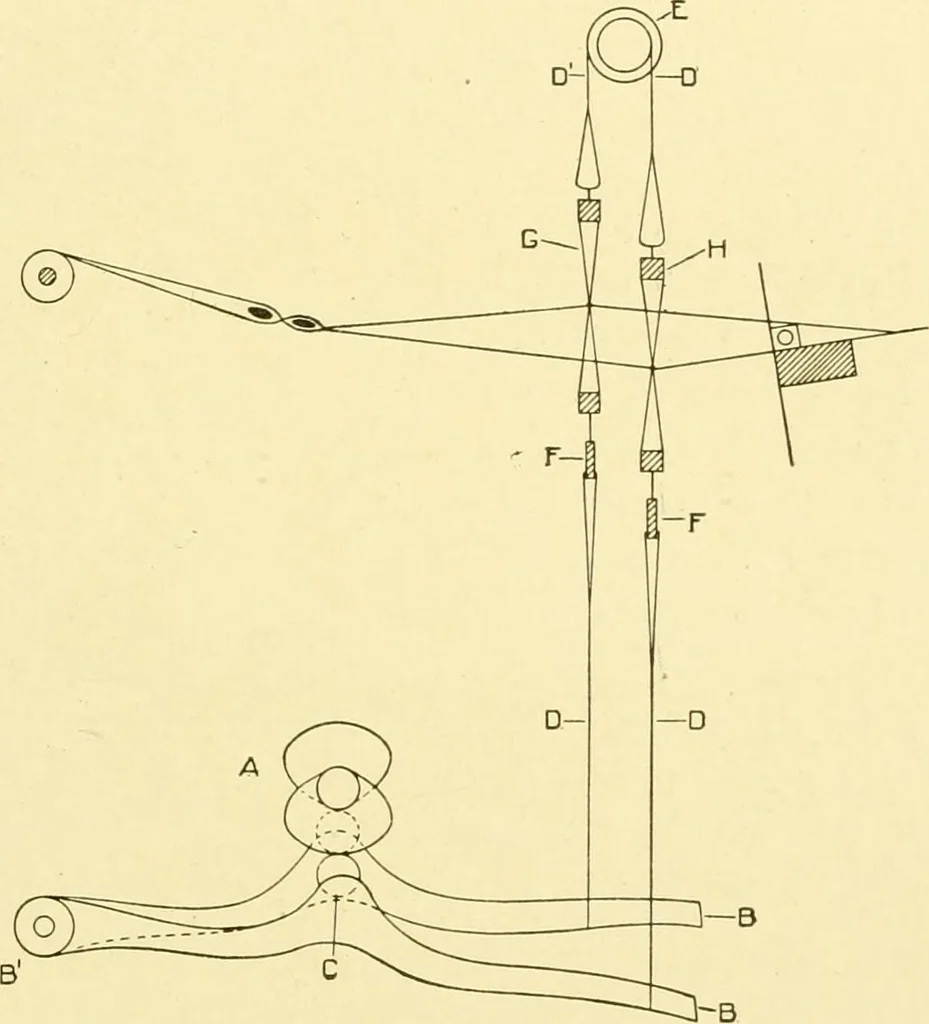

operate the treadles. The sketchrepresents two cams used in making plain cloth; as one treadle isdepressed by tlie extended portion of the cam. A, the other treadleis raised, and for the next pick the opposite takes place. That is,the harness that was first depressed is raised, and the one that… … Fitj. 54. Sheddiug Motion. nected with the treadle that is raised, and at the top it is attachedto the lamb, F. This lamb is connected with the bottom of theharness, G, by means of a hook; the top of the harness is connectedby a similar hook to the top harness strap D. This strap is fastenedto the…
