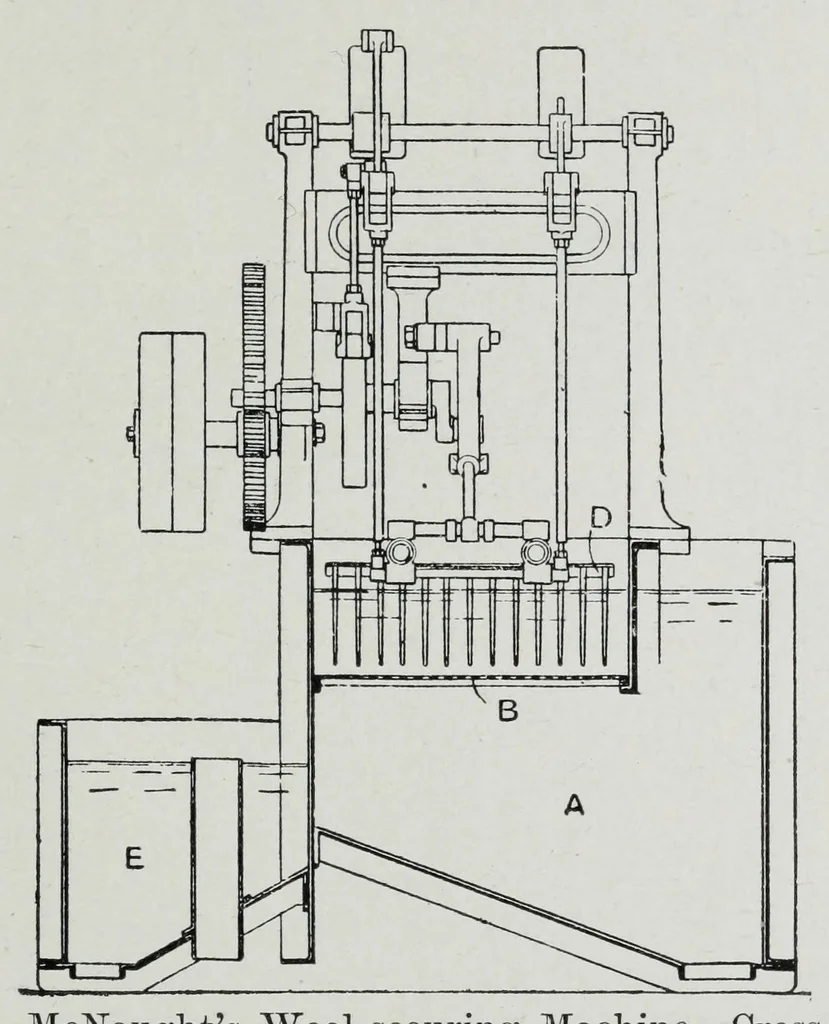

ING. 105 in one direction, whilst the return current of liquor can flow along the upper part of the tank a, outside the com- partment containing the wool. The dirt which is loosened from the wool falls through the perforated bottom plate B and slides down the inclined bottom of the tank a, from… … Fig. 30. — McNaught's Wool- scouring" Machine — Cross Section. the lattice H. It then goes forward to a similar machine, or may be passed forward to be dried. The liquor ejected by the squeeze rolls G runs through perforations in the incline and down to the small tank e (Fig. 30), from whence it is…
