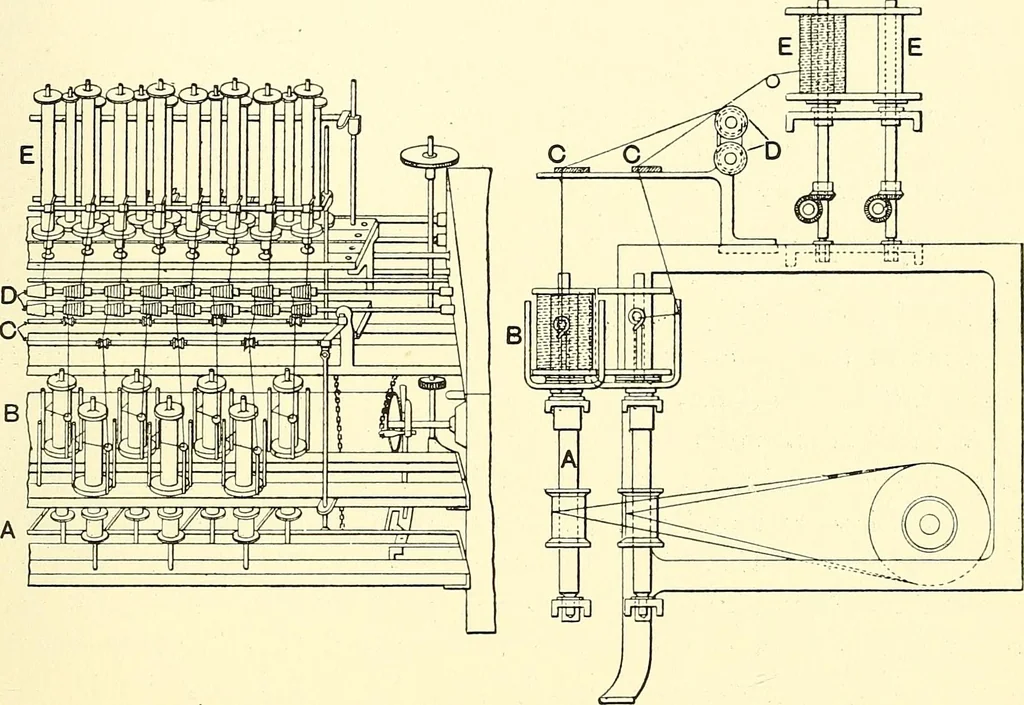

r, legs upward. Abovethe heads of the bobbins is the carrier rail, which unites the yarns.Farther up we find a pair of twist cones, one larger than the other,driven from the side on a shaft. Passed round these cones and twisted,the yarn goes through a hook in the copping rail and on to the… … Fig. 186.—Upward Twister (from Spoils Encyclopedia 0/Arts and Manii/actnres] A A, Twisting spindles. B B, Bobbins from doubling frame, c c, Carrier rails. D D, Twist rollers.E E, Taking-up bobbins. that the common form of spinning frame was final; but there we seea departure which is literally and…
