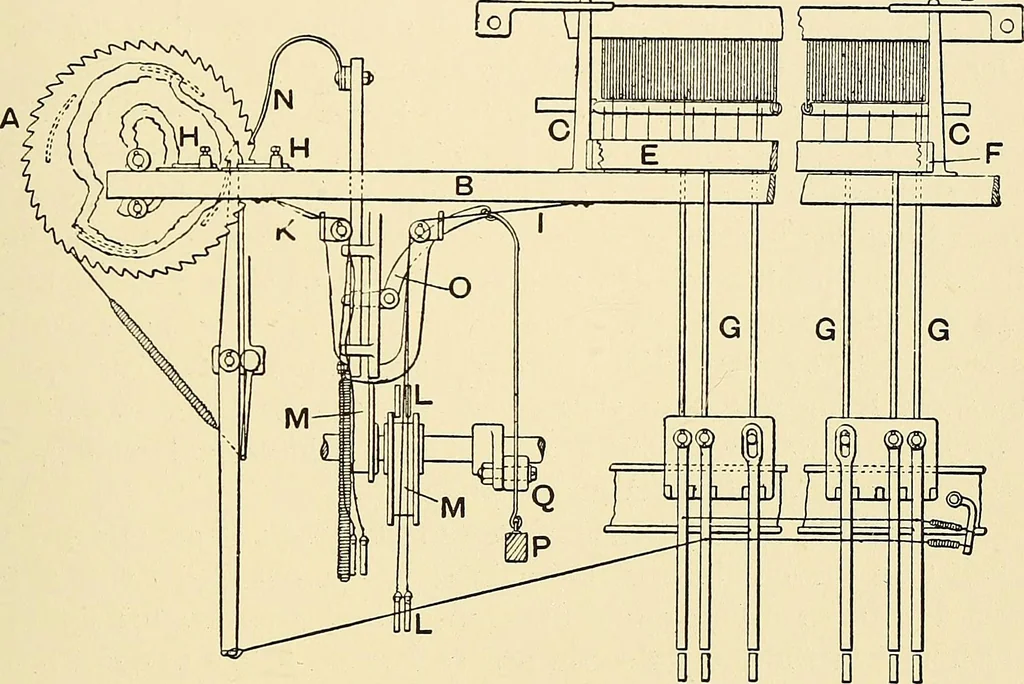

rail, d, Reed. THE REED OR SLEY 99 apparatus consists of needle bars set in a groove between the shuttlerace and the reed, whip rolls or bobbin stands carrying the extrawarp for the figures; and a lappet wheel, for the guidance of theneedle bars in forming the figure (fig. 306). The mechanism of… … Fig. 307.—Lappet Mechanism A, Lappet wheel. b, Shifter frames. c, Vertical guiding slides. d, Slotted plates for slides. e, Pin bar.F, Needle bar. G, Vertical levers on rocking shaft lifting and depressing the bars. H H, Pecks or fingers of shifterframes. i, Strap from treadle lever. K, Strap…
