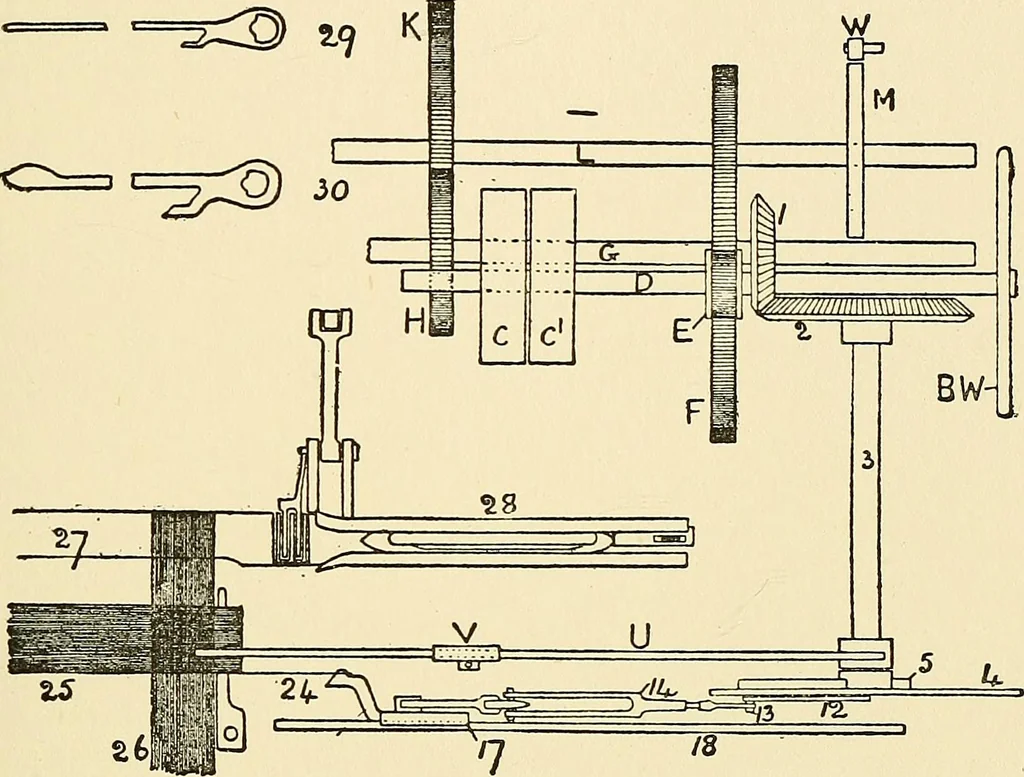

e having a hook at each end. A reciprocating rod at one sidedrew the wire into the warp by linking a hook into the hook of thewire; a similar rod at the other side drew the used wires out of thecloth in the same way, delivering them loose, to be laid by the weaver THE REED OR SLEY 105 into the… … q IB Fig. 311^.—Plan of Wire Mechanism (cradle motion) Description of Figs. 311a and b M, Tappet securely fixed to shaft l and kept in rolling contact with anti-friction roller w, which by means oflevers not shown oscillates the levers s and s^ rigidly fixed to shaft T. These levers support the bar…
