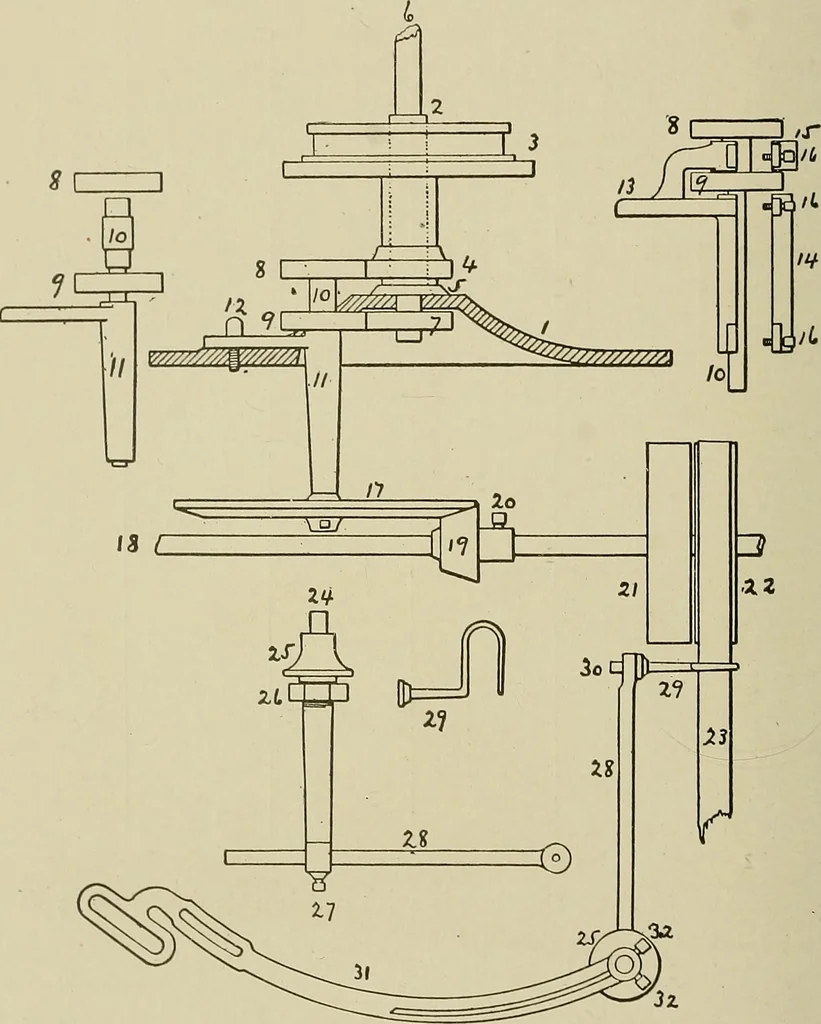

nder the table. Each of thesecounters have a tight and loose pulley, for the cylinder is startedand stopped with a shipper which is mounted on top of the tablewithin easy reach of the operator, as is shown in detail in Fig. 15.On each counter is a bevel pinion that meshes with a bevel gear 43 82… … Fig. 15. Cylinder Drive. The gear on the lower end of the vertical shaft is hidden by thebed plate, but is shown in detail in this illustration. This verti-cal shaft drives the take-up, revolves in the same direction as thecylinder and makes the same number of revolutions per minute. 44 KNITTING.…
