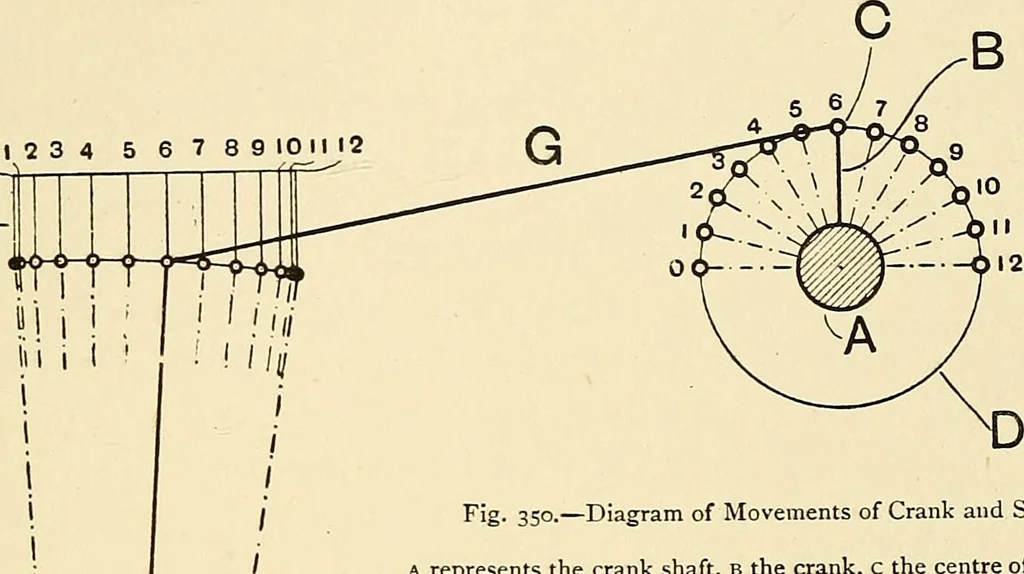

Fig. 349-- -Diagram of Loom, showing Going Part and Tappet Motion THE GOING PART 165 of driving gives unity to the whole working of the loom, and facilitatesalterations in speeds through the change wheel, thus obviating the 012 3 4 5 6 7 8 9 lOII 12 H— … E / Fig. 350.—Diagram of Movements of Crank and Slay A represents the crank shaft, B the crank, c the centre of the crankpin, and D the circle described by it. E is the centre line of thesword, F its fulcrum, and G the connecting rod. The varying spaceson the line H indicate the varying distances…
