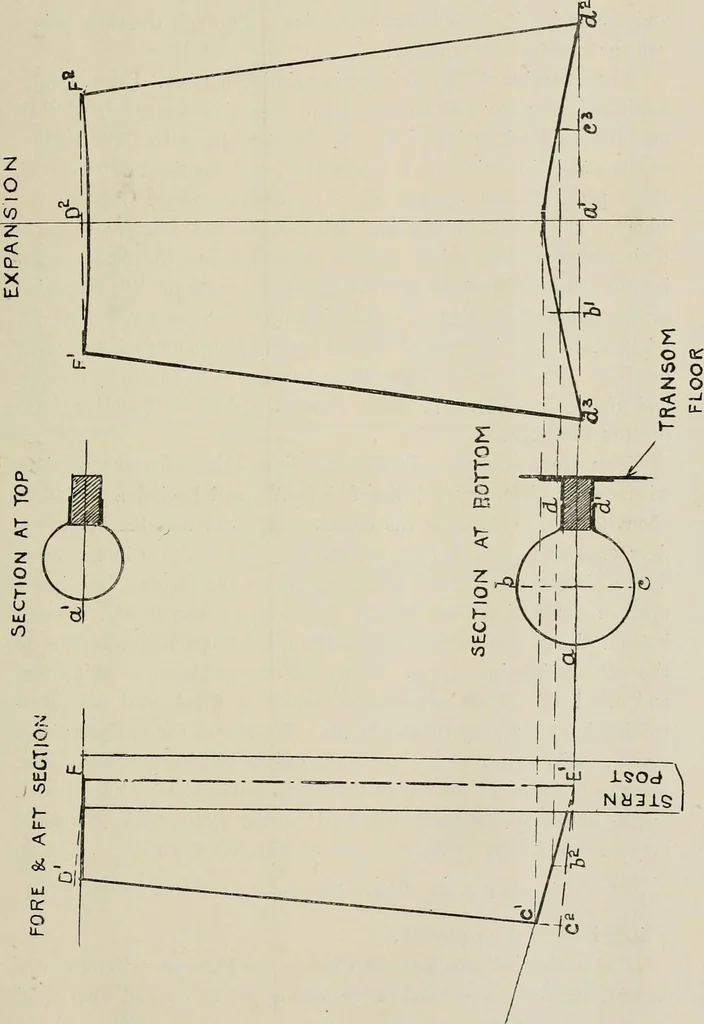

MISCELLANEOUS. 99 Measure the length of C2 D1 with the point C1 from C2, and lay them off on the centre above E3 E2. Pass a curve through the 0) L … points, which will give form of the bottom edge. The point D2 willbe the extreme length of the plate, and the level for the points F1 100 NAVAL ARCHITECTURE. will be got by girthing the top section around the centre line, andsetting- them off each side of D2. The distance of the trunk top, onthe…
