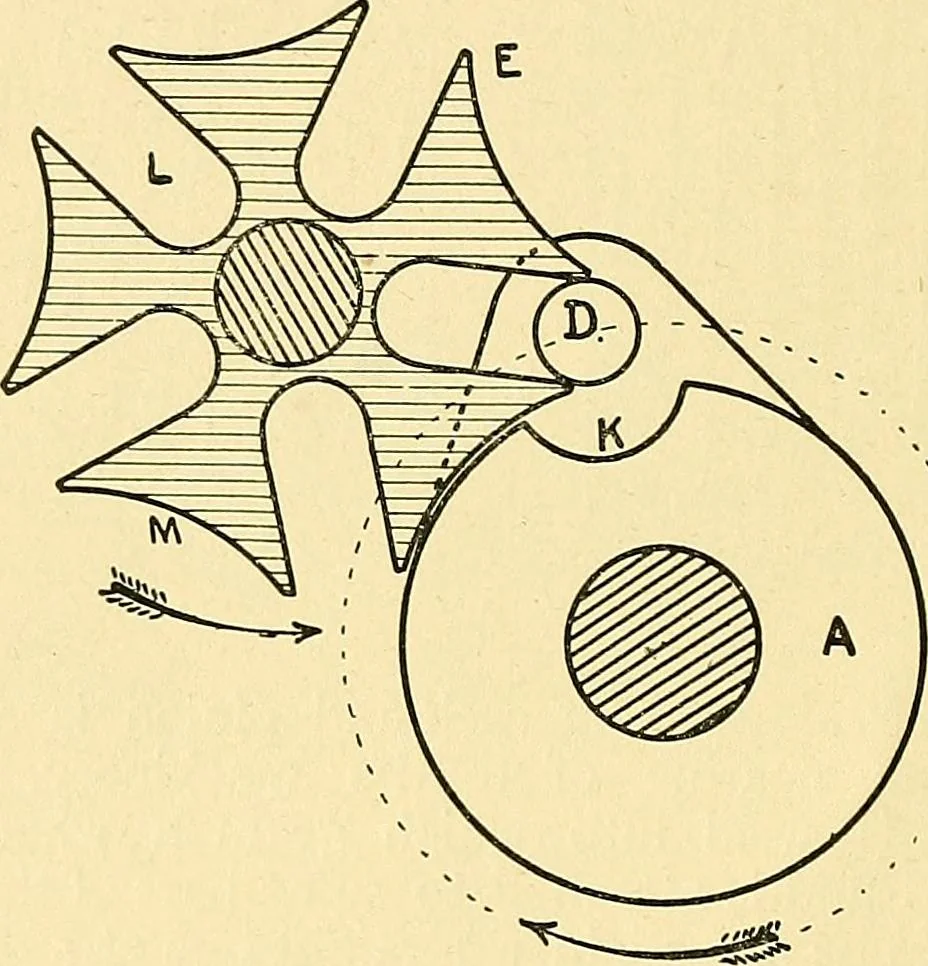

else the space occupied by the-whole of the teeth that are moved. If the pitch of the teeth in 14 TEXTILE MECHANICS Fig. 26 is half an inch, then three revolutions of A will move therack 3 X 16 = 48 teeth and 48 x 1 in. = 24 in., the distance movedby the rack. Star-Wheel—This arrangement sometimes… … FifZr carrying a pin or stud D, is fixed to the shaft. This arm isalso provided with a turned boss A having a recess cut out atK. On the shaft to be driven intermittently is keyed aspecially formed wheel E, having slots L and the surfacebetween the slots cut out to the same radius as the boss A.As…
